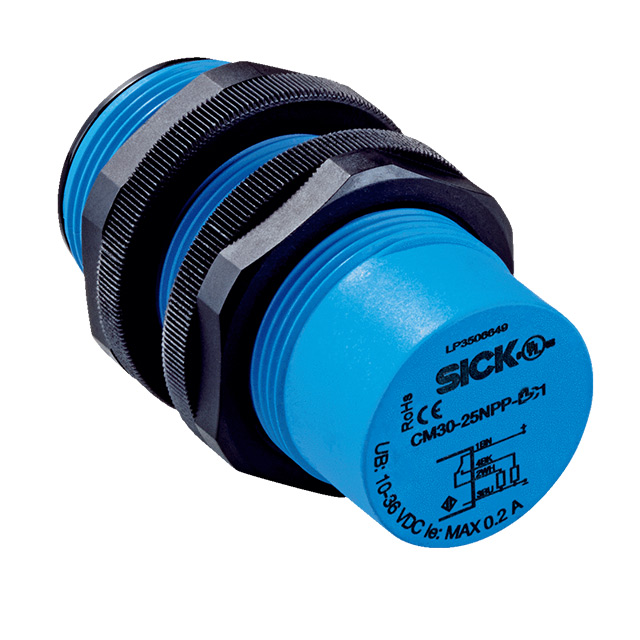

6058157

Active

SICK, Inc.

SENSOR PROX CAP 4MM-25MM CYLIND

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR PROX CAP 4MM-25MM CYLIND

Technical Specifications

Parameters and characteristics for this part

Part	Sensor Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Frequency	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Shielding	Ingress Protection	Termination Style	Material - Body	Indicator [custom]
SICK, Inc. 6058156	Capacitive	-30 °C	85 °C	4-Wire PNP-NC/NO	Cylinder Threaded - M30	10 VDC	36 V	50 Hz	0.984 "	4 mm	25 mm	0.157 "	Shielded	IP68 IP69K	Cable Leads	Plastic	No Indicator
SICK, Inc. 6058158	Capacitive	-30 °C	85 °C	NPN-NC/NO 4-Wire	Cylinder Threaded - M30	10 VDC	36 V	50 Hz	0.984 "	4 mm	25 mm	0.157 "	Shielded	IP68 IP69K	Cable Leads	Plastic	No Indicator
SICK, Inc. 6058157	Capacitive	-30 °C	85 °C	4-Wire PNP-NC	Cylinder Threaded - M30	10 VDC	36 V	50 Hz	0.984 "	4 mm	25 mm	0.157 "	Unshielded	IP68 IP69K	Connector	Plastic	LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR PROX CAP 4MM-25MM CYLIND

Technical documentation and resources
