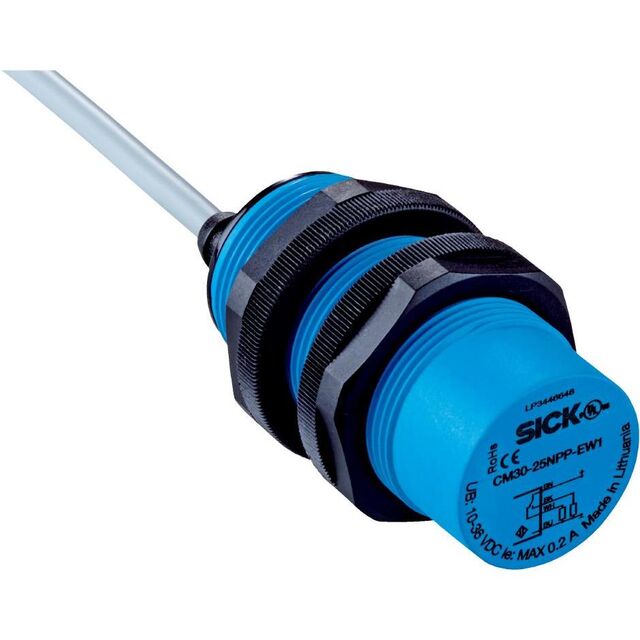

6058158

Active

SICK, Inc.

SENSOR PROX CAP 4MM-25MM CYLIND

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR PROX CAP 4MM-25MM CYLIND

Technical Specifications

Parameters and characteristics for this part

Part	Sensor Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Frequency	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Shielding	Ingress Protection	Termination Style	Material - Body	Indicator [custom]
SICK, Inc. 6058156	Capacitive	-30 °C	85 °C	4-Wire PNP-NC/NO	Cylinder Threaded - M30	10 VDC	36 V	50 Hz	0.984 "	4 mm	25 mm	0.157 "	Shielded	IP68 IP69K	Cable Leads	Plastic	No Indicator
SICK, Inc. 6058158	Capacitive	-30 °C	85 °C	NPN-NC/NO 4-Wire	Cylinder Threaded - M30	10 VDC	36 V	50 Hz	0.984 "	4 mm	25 mm	0.157 "	Shielded	IP68 IP69K	Cable Leads	Plastic	No Indicator
SICK, Inc. 6058157	Capacitive	-30 °C	85 °C	4-Wire PNP-NC	Cylinder Threaded - M30	10 VDC	36 V	50 Hz	0.984 "	4 mm	25 mm	0.157 "	Unshielded	IP68 IP69K	Connector	Plastic	LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 175.85

General part information

SENSOR PROX CAP 4MM-25MM CYLIND

Technical documentation and resources
