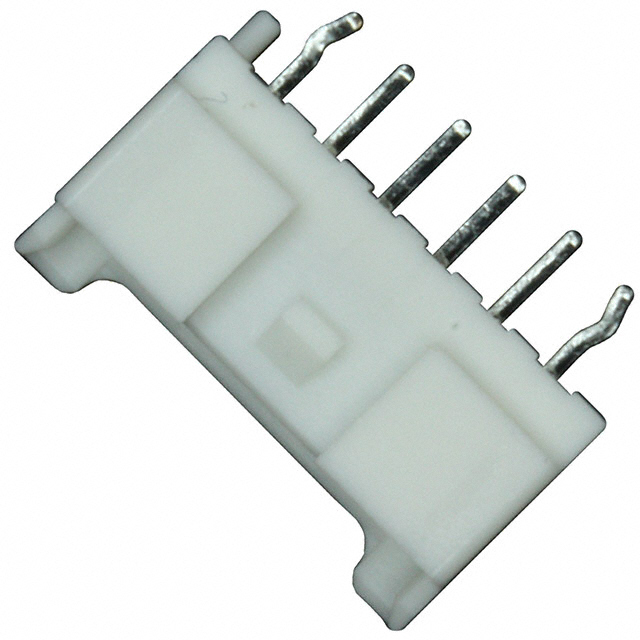

B06B-PASK-1
ActiveJST Sales America Inc.
CONN HEADER VERT 6POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
B06B-PASK-1
ActiveJST Sales America Inc.
CONN HEADER VERT 6POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B06B-PASK-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 3.2 mm |
| Contact Length - Mating | 0.126 " |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | Natural |
| Insulation Height | 0.303 in |
| Insulation Height | 7.7 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mated Stacking Heights | 14.7 mm, 9.9 mm, 14.9 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overall Contact Length [x] | 8.1 mm |
| Overall Contact Length [x] | 0.319 in |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.51 | |
| 10 | $ 0.43 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.24 | |||
| 5000 | $ 0.21 | |||
| 10000 | $ 0.19 | |||
Description
General part information
B06B-PAS Series
Connector Header Through Hole 6 position 0.079" (2.00mm)
