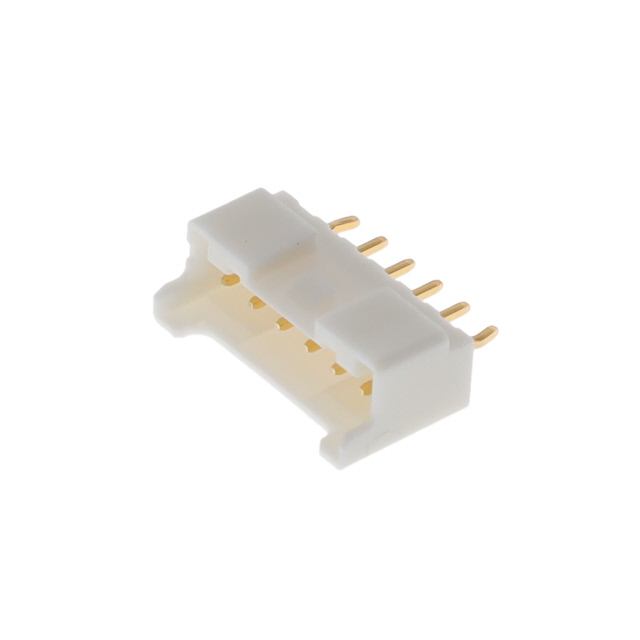

B06B-PASK-GU

Active

JST Sales America Inc.

CONN HEADER VERT 6POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

B06B-PASK-GU

Active

JST Sales America Inc.

CONN HEADER VERT 6POS 2MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B06B-PASK-GU

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Length - Mating	3.2 mm
Contact Length - Mating	0.126 "
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.303 in
Insulation Height	7.7 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mated Stacking Heights	14.7 mm, 9.9 mm, 14.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length [x]	8.1 mm
Overall Contact Length [x]	0.319 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VDC

B06B-PAS Series

Part	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Material	Connector Type	Insulation Color	Features	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Mated Stacking Heights	Voltage Rating	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Number of Positions	Overall Contact Length [x]	Overall Contact Length [x]	Fastening Type	Shrouding	Contact Material	Number of Rows	Contact Shape	Style	Contact Finish - Mating	Insulation Height	Insulation Height	Mounting Type	Contact Finish - Post
JST Sales America Inc. B06B-PASK-GZ	All	3.2 mm	0.126 "	-25 °C	85 °C	31.5 µin	0.8 µm	Kinked Pin Solder	Polybutylene Terephthalate (PBT) Glass Filled	Header	Natural	Board Guide	3 A	0.118 in	3 mm	9.9 mm 14.7 mm 14.9 mm	250 VDC	Male Pin	0.079 in	2 mm	UL94 V-0	6	8.1 mm	0.319 in	Locking Ramp	Shrouded - 4 Wall	Copper Alloy	1	Square	Board to Cable/Wire	Gold	0.303 in	7.7 mm	Through Hole
JST Sales America Inc. B06B-PASK-GU	All	3.2 mm	0.126 "	-25 °C	85 °C	16 Áin	0.41 Ám	Kinked Pin Solder	Polybutylene Terephthalate (PBT) Glass Filled	Header	Natural	Board Guide	3 A	0.118 in	3 mm	9.9 mm 14.7 mm 14.9 mm	250 VDC	Male Pin	0.079 in	2 mm	UL94 V-0	6	8.1 mm	0.319 in	Locking Ramp	Shrouded - 4 Wall	Copper Alloy	1	Square	Board to Cable/Wire	Gold	0.303 in	7.7 mm	Through Hole
JST Sales America Inc. B06B-PASK-1	All	3.2 mm	0.126 "	-25 °C	85 °C			Kinked Pin Solder	Polybutylene Terephthalate (PBT) Glass Filled	Header	Natural	Board Guide	3 A	0.118 in	3 mm	9.9 mm 14.7 mm 14.9 mm	250 VDC	Male Pin	0.079 in	2 mm	UL94 V-0	6	8.1 mm	0.319 in	Locking Ramp	Shrouded - 4 Wall	Copper Alloy	1	Square	Board to Cable/Wire		0.303 in	7.7 mm	Through Hole	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.44

Description

General part information

B06B-PAS Series

Connector Header Through Hole 6 position 0.079" (2.00mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
