264-331

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Technical Data Sheet EN +2

264-331

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Deep-Dive with AI

DocumentsDrawing EN Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	264-331

Current - IEC	24 A
Features	Flange
Height (Max) [Max]	0.87 in
Height (Max) [Max]	22.1 mm
Housing Color	Gray
Length [x]	32 mm
Length [x]	1.26 "
Material - Insulation	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Direct Mount
Number of Levels	1
Number of Positions	4
Stripping Length [Max] [x]	9 mm
Stripping Length [Min] [x]	8 mm
Terminal - Width [y]	10 mm
Termination Style	Push In, Spring
Type	Middle
Voltage - IEC	800 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²

264 Series

Part	Housing Color	Termination Style	Material Flammability Rating	Material - Insulation	Terminal - Width [y]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Stripping Length [Min] [x]	Stripping Length [Max] [x]	Length	Length	Mounting Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC	Height (Max) [Max]	Height (Max)	Type	Current - IEC	Number of Levels	Number of Positions	For Use With/Related Products	Color	Style	Length [x]	Length [x]	Height (Max) [Max]	Height (Max) [Max]	Features
WAGO Corporation 264-711	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	6 mm	28 AWG	12 AWG	8 mm	9 mm	1.496 in	38 mm	DIN Rail	0.08 mm²	2.5 mm²	800 V	0.965 in	24.51 mm	Middle	24 A	1	2
WAGO Corporation 264-402																		Terminal Block Cross Connection			2	Terminal Blocks	Gray	Flat Pins - Angled
WAGO Corporation 264-737	Green Yellow	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	10 mm	28 AWG	12 AWG	8 mm	9 mm	1.831 "	46.51 mm	DIN Rail	0.08 mm²	2.5 mm²		0.965 in	24.51 mm	Middle		1	4
WAGO Corporation 264-369																		End Plate				Terminal Blocks
WAGO Corporation 264-361																		End Plate				Terminal Blocks	Gray
WAGO Corporation 264-351	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	10 mm	28 AWG	12 AWG	8 mm	9 mm			Direct Mount	0.08 mm²	2.5 mm²	800 V			Middle	24 A	1	4				32 mm	1.26 "	0.87 in	22.1 mm
WAGO Corporation 264-331	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	10 mm	28 AWG	12 AWG	8 mm	9 mm			Direct Mount	0.08 mm²	2.5 mm²	800 V			Middle	24 A	1	4				32 mm	1.26 "	0.87 in	22.1 mm	Flange
WAGO Corporation 264-701	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	6 mm	28 AWG	12 AWG	8 mm	9 mm			DIN Rail	0.08 mm²	2.5 mm²	800 V	0.965 in	24.51 mm	Middle	24 A	1	2				32 mm	1.26 "
WAGO Corporation 264-301	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	6 mm	28 AWG	12 AWG	8 mm	9 mm			Direct Mount	0.08 mm²	2.5 mm²	800 V			Middle	24 A	1	2				32 mm	1.26 "	0.87 in	22.1 mm	Flange
WAGO Corporation 264-731	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	10 mm	28 AWG	12 AWG	8 mm	9 mm	1.496 in	38 mm	DIN Rail	0.08 mm²	2.5 mm²	800 V	0.965 in	24.51 mm	Middle	24 A	1	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.29
		10	$ 2.50
		25	$ 2.35
		50	$ 2.09
		100	$ 2.04
		250	$ 1.88
		500	$ 1.70
		1000	$ 1.51
		5000	$ 1.42
Newark	Each	1	$ 3.11
		25	$ 2.93
		100	$ 2.76
		250	$ 2.60
		500	$ 2.40

Description

General part information

264 Series

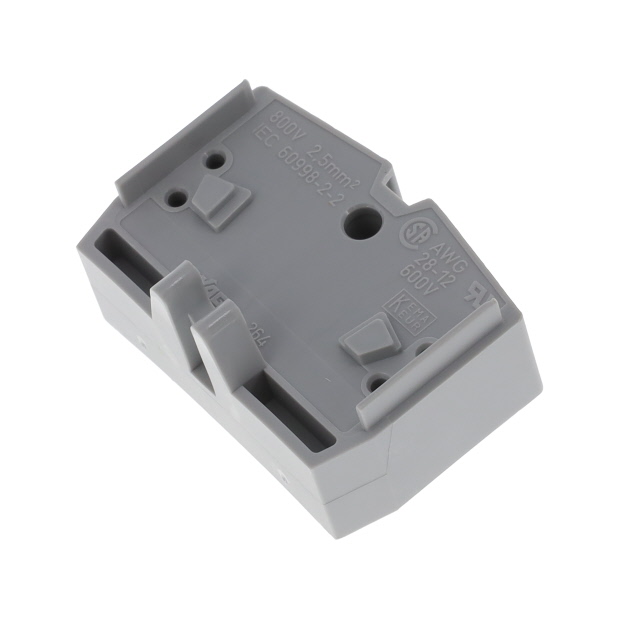

The 264-331 from Wago is a gray colour 4-conductor end terminal block with fixing flange for screw or similar mounting types. It has four connection points, one potential and one level. This terminal block has ABS, BV, CCA, CSA, DNV GL, KEMA, KR and LR approvals.
