264-369

Active

WAGO Corporation

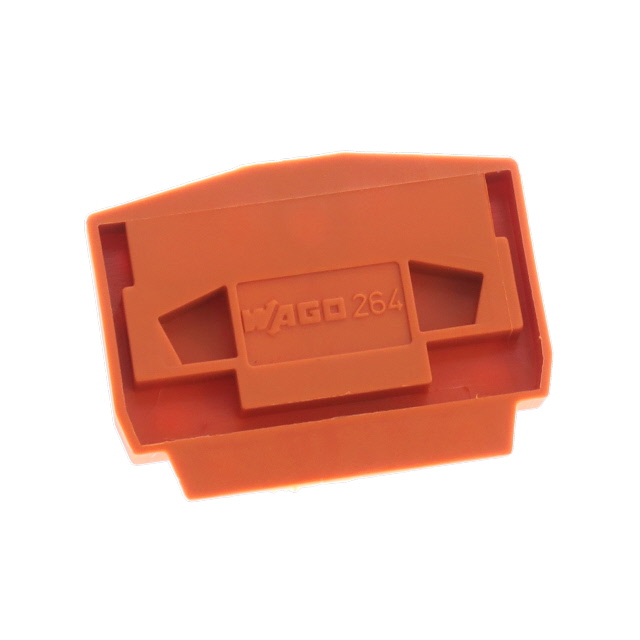

END COVER, FOR USE WITH MINIATURE THROUGH TERMINAL BLOCKS FOR DIN 35 RAIL, ORANGE

Deep-Dive with AI

Search across all available documentation for this part.

264-369

Active

WAGO Corporation

END COVER, FOR USE WITH MINIATURE THROUGH TERMINAL BLOCKS FOR DIN 35 RAIL, ORANGE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	264-369

For Use With/Related Products	Terminal Blocks
Type	End Plate

264 Series

Part	Housing Color	Termination Style	Material Flammability Rating	Material - Insulation	Terminal - Width [y]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Stripping Length [Min] [x]	Stripping Length [Max] [x]	Length	Length	Mounting Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC	Height (Max) [Max]	Height (Max)	Type	Current - IEC	Number of Levels	Number of Positions	For Use With/Related Products	Color	Style	Length [x]	Length [x]	Height (Max) [Max]	Height (Max) [Max]	Features
WAGO Corporation 264-711	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	6 mm	28 AWG	12 AWG	8 mm	9 mm	1.496 in	38 mm	DIN Rail	0.08 mm²	2.5 mm²	800 V	0.965 in	24.51 mm	Middle	24 A	1	2
WAGO Corporation 264-402																		Terminal Block Cross Connection			2	Terminal Blocks	Gray	Flat Pins - Angled
WAGO Corporation 264-737	Green Yellow	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	10 mm	28 AWG	12 AWG	8 mm	9 mm	1.831 "	46.51 mm	DIN Rail	0.08 mm²	2.5 mm²		0.965 in	24.51 mm	Middle		1	4
WAGO Corporation 264-369																		End Plate				Terminal Blocks
WAGO Corporation 264-361																		End Plate				Terminal Blocks	Gray
WAGO Corporation 264-351	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	10 mm	28 AWG	12 AWG	8 mm	9 mm			Direct Mount	0.08 mm²	2.5 mm²	800 V			Middle	24 A	1	4				32 mm	1.26 "	0.87 in	22.1 mm
WAGO Corporation 264-331	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	10 mm	28 AWG	12 AWG	8 mm	9 mm			Direct Mount	0.08 mm²	2.5 mm²	800 V			Middle	24 A	1	4				32 mm	1.26 "	0.87 in	22.1 mm	Flange
WAGO Corporation 264-701	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	6 mm	28 AWG	12 AWG	8 mm	9 mm			DIN Rail	0.08 mm²	2.5 mm²	800 V	0.965 in	24.51 mm	Middle	24 A	1	2				32 mm	1.26 "
WAGO Corporation 264-301	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	6 mm	28 AWG	12 AWG	8 mm	9 mm			Direct Mount	0.08 mm²	2.5 mm²	800 V			Middle	24 A	1	2				32 mm	1.26 "	0.87 in	22.1 mm	Flange
WAGO Corporation 264-731	Gray	Push In Spring	UL94 V-0	Polyamide (PA66) Nylon 6/6	10 mm	28 AWG	12 AWG	8 mm	9 mm	1.496 in	38 mm	DIN Rail	0.08 mm²	2.5 mm²	800 V	0.965 in	24.51 mm	Middle	24 A	1	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.56
		10	$ 0.48
		25	$ 0.44
		50	$ 0.42
		100	$ 0.40
		250	$ 0.37
		500	$ 0.35
		1000	$ 0.29
		2500	$ 0.26
Newark	Each	1	$ 0.51
		25	$ 0.48
		100	$ 0.46
		250	$ 0.43
		500	$ 0.40

Description

General part information

264 Series

The 264-369 is a 4mm orange End and Intermediate Plate for DIN 35 rail modular terminal blocks and terminal strips.
