Technical Specifications
Parameters and characteristics for this part

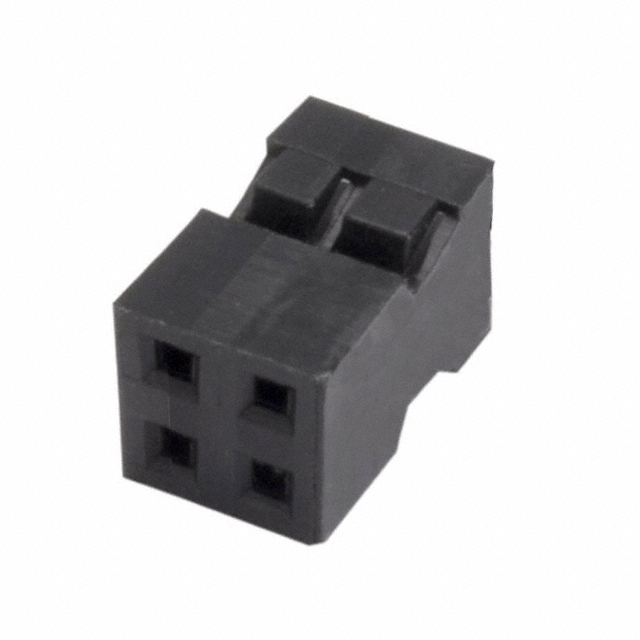

| Specification | M22-3020200 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 2 mm |
| Row Spacing | 0.079 in |
M22-302 Series
| Part | Pitch [x] | Pitch [x] | Connector Type | Contact Type | Row Spacing | Row Spacing | Mounting Type | Number of Rows | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Note | Contact Termination | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 0.079 in | 2 mm | Receptacle | Female Socket | 2 mm | 0.079 in | Free Hanging (In-Line) | 2 | 16 | -25 °C | 85 °C | Thermoplastic | Contacts Not Included | Crimp | Black | |
Harwin Inc. | 0.079 in | 2 mm | Receptacle | Female Socket | 2 mm | 0.079 in | Free Hanging (In-Line) | 2 | -25 °C | 85 °C | Thermoplastic | Contacts Not Included | Crimp | Black | 6 | |
Harwin Inc. | 0.079 in | 2 mm | Receptacle | Female Socket | 2 mm | 0.079 in | Free Hanging (In-Line) | 2 | -25 °C | 85 °C | Thermoplastic | Contacts Not Included | Crimp | Black | 10 | |
Harwin Inc. | 0.079 in | 2 mm | Receptacle | Female Socket | 2 mm | 0.079 in | Free Hanging (In-Line) | 2 | -25 °C | 85 °C | Thermoplastic | Contacts Not Included | Crimp | Black | 4 | |
Harwin Inc. | 0.079 in | 2 mm | Receptacle | Female Socket | 2 mm | 0.079 in | Free Hanging (In-Line) | 2 | -25 °C | 85 °C | Thermoplastic | Contacts Not Included | Crimp | Black | 34 | |
Harwin Inc. | 0.079 in | 2 mm | Receptacle | Female Socket | 2 mm | 0.079 in | Free Hanging (In-Line) | 2 | -25 °C | 85 °C | Thermoplastic | Contacts Not Included | Crimp | Black | 40 | |
Harwin Inc. | 0.079 in | 2 mm | Receptacle | Female Socket | 2 mm | 0.079 in | Free Hanging (In-Line) | 2 | -25 °C | 85 °C | Thermoplastic | Contacts Not Included | Crimp | Black | 24 | |
Harwin Inc. | 0.079 in | 2 mm | Receptacle | Female Socket | 2 mm | 0.079 in | Free Hanging (In-Line) | 2 | -25 °C | 85 °C | Thermoplastic | Contacts Not Included | Crimp | Black | 8 | |
Harwin Inc. | 0.079 in | 2 mm | Receptacle | Female Socket | 2 mm | 0.079 in | Free Hanging (In-Line) | 2 | -25 °C | 85 °C | Thermoplastic | Contacts Not Included | Crimp | Black | 12 | |
Harwin Inc. | 0.079 in | 2 mm | Receptacle | Female Socket | 2 mm | 0.079 in | Free Hanging (In-Line) | 2 | -25 °C | 85 °C | Thermoplastic | Contacts Not Included | Crimp | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M22-302 Series
4 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
