M22-3020800

Active

Harwin Inc.

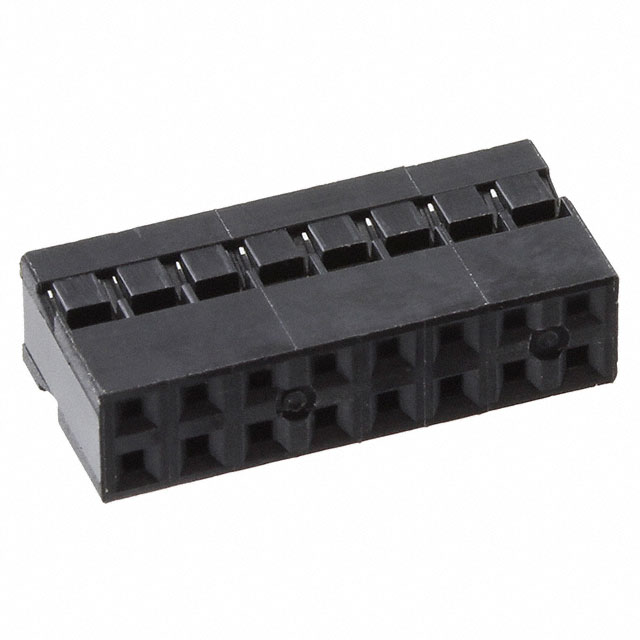

HEADER CONNECTOR,CABLE MOUNT,PLUG,16 CONTACTS,SKT,0.079 PITCH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M22 Series Spec Sheet +1

M22-3020800

Active

Harwin Inc.

HEADER CONNECTOR,CABLE MOUNT,PLUG,16 CONTACTS,SKT,0.079 PITCH ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet M22 Series Spec Sheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-3020800

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

M22-302 Series

Part	Pitch [x]	Pitch [x]	Connector Type	Contact Type	Row Spacing	Row Spacing	Mounting Type	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Note	Contact Termination	Color	Number of Positions
Harwin Inc. M22-3020800	0.079 in	2 mm	Receptacle	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	2	16	-25 °C	85 °C	Thermoplastic	Contacts Not Included	Crimp	Black
Harwin Inc. M22-3020300	0.079 in	2 mm	Receptacle	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	2		-25 °C	85 °C	Thermoplastic	Contacts Not Included	Crimp	Black	6
Harwin Inc. M22-3020500	0.079 in	2 mm	Receptacle	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	2		-25 °C	85 °C	Thermoplastic	Contacts Not Included	Crimp	Black	10
Harwin Inc. M22-3020200	0.079 in	2 mm	Receptacle	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	2		-25 °C	85 °C	Thermoplastic	Contacts Not Included	Crimp	Black	4
Harwin Inc. M22-3021700	0.079 in	2 mm	Receptacle	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	2		-25 °C	85 °C	Thermoplastic	Contacts Not Included	Crimp	Black	34
Harwin Inc. M22-3022000	0.079 in	2 mm	Receptacle	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	2		-25 °C	85 °C	Thermoplastic	Contacts Not Included	Crimp	Black	40
Harwin Inc. M22-3021200	0.079 in	2 mm	Receptacle	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	2		-25 °C	85 °C	Thermoplastic	Contacts Not Included	Crimp	Black	24
Harwin Inc. M22-3020400	0.079 in	2 mm	Receptacle	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	2		-25 °C	85 °C	Thermoplastic	Contacts Not Included	Crimp	Black	8
Harwin Inc. M22-3020600	0.079 in	2 mm	Receptacle	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	2		-25 °C	85 °C	Thermoplastic	Contacts Not Included	Crimp	Black	12
Harwin Inc. M22-3021600	0.079 in	2 mm	Receptacle	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	2		-25 °C	85 °C	Thermoplastic	Contacts Not Included	Crimp	Black
