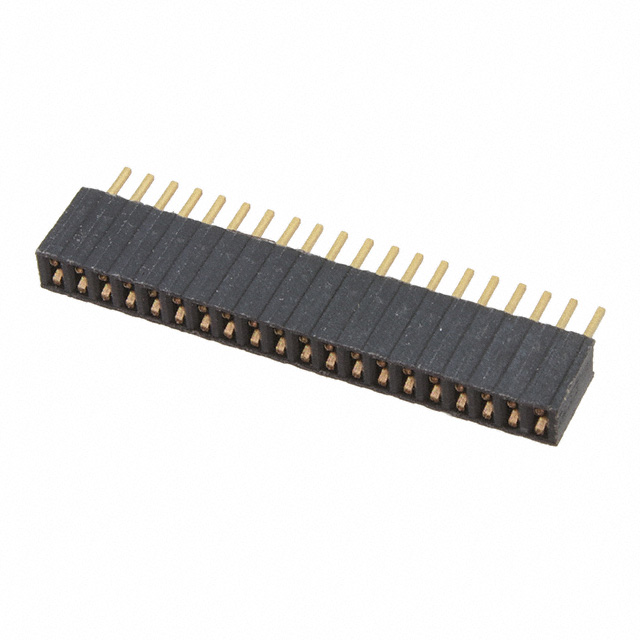

HRS-1B-20-GA

Active

Adam Tech

RECEPTACLE STRIP, 1.27MM,VERTICA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

HRS-1B-20-GA

Active

Adam Tech

RECEPTACLE STRIP, 1.27MM,VERTICA

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HRS-1B-20-GA

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.6 mm
Insulation Height	0.181 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder
Voltage Rating	250 VAC

HRS-1B Series

Part	Number of Positions	Insulation Height	Insulation Height	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Rows	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish Thickness - Mating	Contact Finish - Mating	Applications	Voltage Rating	Contact Length - Post	Contact Length - Post	Insulation Material	Fastening Type	Contact Type	Contact Material	Contact Finish Thickness - Post	Mounting Type	Number of Positions Loaded	Contact Finish - Post	Insulation Color	Contact Shape
Adam Tech HRS-1B-15-GA	15	4.6 mm	0.181 in	Solder	-40 °C	105 ░C	UL94 V-0	1	0.05 in	1.27 mm	Receptacle	Flash	Gold	General Purpose	250 VAC	0.118 in	3 mm	Thermoplastic	Push-Pull	Forked	Phosphor Bronze	Flash	Through Hole	All	Gold	Black	Rectangular
Adam Tech HRS-1B-14-GA	14	4.6 mm	0.181 in	Solder	-40 °C	105 ░C	UL94 V-0	1	0.05 in	1.27 mm	Receptacle	Flash	Gold	General Purpose	250 VAC	0.118 in	3 mm	Thermoplastic	Push-Pull	Forked	Phosphor Bronze	Flash	Through Hole	All	Gold	Black	Rectangular
Adam Tech HRS-1B-07-GA	7	4.6 mm	0.181 in	Solder	-40 °C	105 ░C	UL94 V-0	1	0.05 in	1.27 mm	Receptacle	Flash	Gold	General Purpose	250 VAC	0.118 in	3 mm	Thermoplastic	Push-Pull	Forked	Phosphor Bronze	Flash	Through Hole	All	Gold	Black	Rectangular
Adam Tech HRS-1B-03-GA		4.6 mm	0.181 in	Solder	-40 °C	105 ░C	UL94 V-0	1	0.05 in	1.27 mm	Receptacle	Flash	Gold	General Purpose	250 VAC	0.118 in	3 mm	Thermoplastic	Push-Pull	Forked	Phosphor Bronze	Flash	Through Hole	All	Gold	Black	Rectangular
Adam Tech HRS-1B-05-GA		4.6 mm	0.181 in	Solder	-40 °C	105 ░C	UL94 V-0	1	0.05 in	1.27 mm	Receptacle	Flash	Gold	General Purpose	250 VAC	0.118 in	3 mm	Thermoplastic	Push-Pull	Forked	Phosphor Bronze	Flash	Through Hole	All	Gold	Black	Rectangular
Adam Tech HRS-1B-18-GA	18	4.6 mm	0.181 in	Solder	-40 °C	105 ░C	UL94 V-0	1	0.05 in	1.27 mm	Receptacle	Flash	Gold	General Purpose	250 VAC	0.118 in	3 mm	Thermoplastic	Push-Pull	Forked	Phosphor Bronze	Flash	Through Hole	All	Gold	Black	Rectangular
Adam Tech HRS-1B-20-GA	20	4.6 mm	0.181 in	Solder	-40 °C	105 ░C	UL94 V-0	1	0.05 in	1.27 mm	Receptacle	Flash	Gold	General Purpose	250 VAC	0.118 in	3 mm	Thermoplastic	Push-Pull	Forked	Phosphor Bronze	Flash	Through Hole	All	Gold	Black	Rectangular
Adam Tech HRS-1B-21-GA	21	4.6 mm	0.181 in	Solder	-40 °C	105 ░C	UL94 V-0	1	0.05 in	1.27 mm	Receptacle	Flash	Gold	General Purpose	250 VAC	0.118 in	3 mm	Thermoplastic	Push-Pull	Forked	Phosphor Bronze	Flash	Through Hole	All	Gold	Black	Rectangular
Adam Tech HRS-1B-12-GA	12	4.6 mm	0.181 in	Solder	-40 °C	105 ░C	UL94 V-0	1	0.05 in	1.27 mm	Receptacle	Flash	Gold	General Purpose	250 VAC	0.118 in	3 mm	Thermoplastic	Push-Pull	Forked	Phosphor Bronze	Flash	Through Hole	All	Gold	Black	Rectangular
Adam Tech HRS-1B-08-GA	8	4.6 mm	0.181 in	Solder	-40 °C	105 ░C	UL94 V-0	1	0.05 in	1.27 mm	Receptacle	Flash	Gold	General Purpose	250 VAC	0.118 in	3 mm	Thermoplastic	Push-Pull	Forked	Phosphor Bronze	Flash	Through Hole	All	Gold	Black	Rectangular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.64
		10	$ 1.39
		100	$ 1.18
		500	$ 1.06
		1000	$ 1.00
		2508	$ 0.94
		5000	$ 0.85
		5016	$ 0.90
		10000	$ 0.81
		10032	$ 0.86
