HRS-1B-15-GA
ActiveAdam Tech
RECEPTACLE STRIP, 1.27MM, VERTIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HRS-1B-15-GA |
|---|---|
| Applications | General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 4.6 mm |
| Insulation Height | 0.181 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Termination | Solder |
| Voltage Rating | 250 VAC |
HRS-1B Series
| Part | Number of Positions | Insulation Height | Insulation Height | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Rows | Pitch - Mating | Pitch - Mating | Connector Type | Contact Finish Thickness - Mating | Contact Finish - Mating | Applications | Voltage Rating | Contact Length - Post | Contact Length - Post | Insulation Material | Fastening Type | Contact Type | Contact Material | Contact Finish Thickness - Post | Mounting Type | Number of Positions Loaded | Contact Finish - Post | Insulation Color | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | 15 | 4.6 mm | 0.181 in | Solder | -40 °C | 105 ░C | UL94 V-0 | 1 | 0.05 in | 1.27 mm | Receptacle | Flash | Gold | General Purpose | 250 VAC | 0.118 in | 3 mm | Thermoplastic | Push-Pull | Forked | Phosphor Bronze | Flash | Through Hole | All | Gold | Black | Rectangular |
Adam Tech | 14 | 4.6 mm | 0.181 in | Solder | -40 °C | 105 ░C | UL94 V-0 | 1 | 0.05 in | 1.27 mm | Receptacle | Flash | Gold | General Purpose | 250 VAC | 0.118 in | 3 mm | Thermoplastic | Push-Pull | Forked | Phosphor Bronze | Flash | Through Hole | All | Gold | Black | Rectangular |
Adam Tech | 7 | 4.6 mm | 0.181 in | Solder | -40 °C | 105 ░C | UL94 V-0 | 1 | 0.05 in | 1.27 mm | Receptacle | Flash | Gold | General Purpose | 250 VAC | 0.118 in | 3 mm | Thermoplastic | Push-Pull | Forked | Phosphor Bronze | Flash | Through Hole | All | Gold | Black | Rectangular |
Adam Tech | 4.6 mm | 0.181 in | Solder | -40 °C | 105 ░C | UL94 V-0 | 1 | 0.05 in | 1.27 mm | Receptacle | Flash | Gold | General Purpose | 250 VAC | 0.118 in | 3 mm | Thermoplastic | Push-Pull | Forked | Phosphor Bronze | Flash | Through Hole | All | Gold | Black | Rectangular | |
Adam Tech | 4.6 mm | 0.181 in | Solder | -40 °C | 105 ░C | UL94 V-0 | 1 | 0.05 in | 1.27 mm | Receptacle | Flash | Gold | General Purpose | 250 VAC | 0.118 in | 3 mm | Thermoplastic | Push-Pull | Forked | Phosphor Bronze | Flash | Through Hole | All | Gold | Black | Rectangular | |
Adam Tech | 18 | 4.6 mm | 0.181 in | Solder | -40 °C | 105 ░C | UL94 V-0 | 1 | 0.05 in | 1.27 mm | Receptacle | Flash | Gold | General Purpose | 250 VAC | 0.118 in | 3 mm | Thermoplastic | Push-Pull | Forked | Phosphor Bronze | Flash | Through Hole | All | Gold | Black | Rectangular |
Adam Tech | 20 | 4.6 mm | 0.181 in | Solder | -40 °C | 105 ░C | UL94 V-0 | 1 | 0.05 in | 1.27 mm | Receptacle | Flash | Gold | General Purpose | 250 VAC | 0.118 in | 3 mm | Thermoplastic | Push-Pull | Forked | Phosphor Bronze | Flash | Through Hole | All | Gold | Black | Rectangular |
Adam Tech | 21 | 4.6 mm | 0.181 in | Solder | -40 °C | 105 ░C | UL94 V-0 | 1 | 0.05 in | 1.27 mm | Receptacle | Flash | Gold | General Purpose | 250 VAC | 0.118 in | 3 mm | Thermoplastic | Push-Pull | Forked | Phosphor Bronze | Flash | Through Hole | All | Gold | Black | Rectangular |
Adam Tech | 12 | 4.6 mm | 0.181 in | Solder | -40 °C | 105 ░C | UL94 V-0 | 1 | 0.05 in | 1.27 mm | Receptacle | Flash | Gold | General Purpose | 250 VAC | 0.118 in | 3 mm | Thermoplastic | Push-Pull | Forked | Phosphor Bronze | Flash | Through Hole | All | Gold | Black | Rectangular |
Adam Tech | 8 | 4.6 mm | 0.181 in | Solder | -40 °C | 105 ░C | UL94 V-0 | 1 | 0.05 in | 1.27 mm | Receptacle | Flash | Gold | General Purpose | 250 VAC | 0.118 in | 3 mm | Thermoplastic | Push-Pull | Forked | Phosphor Bronze | Flash | Through Hole | All | Gold | Black | Rectangular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.11 | |
| 10 | $ 0.84 | |||
| 100 | $ 0.65 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.50 | |||
| 5000 | $ 0.43 | |||
| 10000 | $ 0.40 | |||
Description
General part information
HRS-1B Series

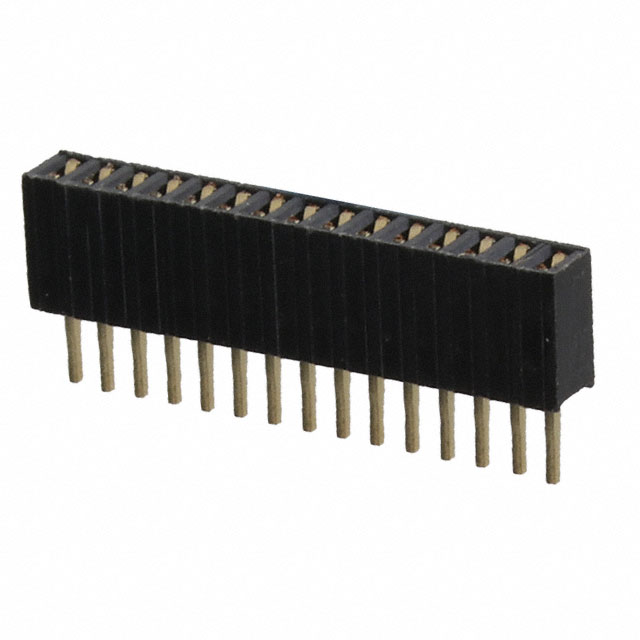

15 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
