2725-2828-BE-01000-A
ActiveCnC Tech, LLC

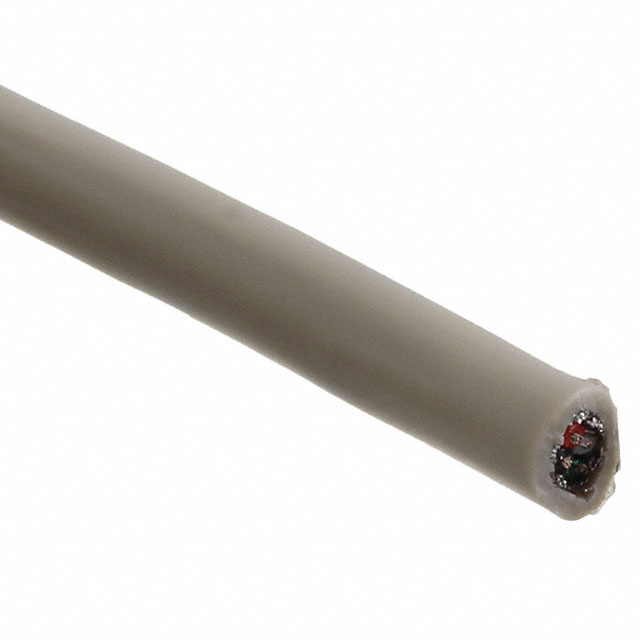

CABLE 4COND 28AWG BEI SHLD 1000'
Deep-Dive with AI
Search across all available documentation for this part.
2725-2828-BE-01000-A
ActiveCnC Tech, LLC
CABLE 4COND 28AWG BEI SHLD 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2725-2828-BE-01000-A |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC), High Density Polyethylene (HDPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 0.0047 in |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 3.81 mm |
| Jacket (Insulation) Diameter [diameter] | 0.15 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.671 mm |
| Jacket (Insulation) Thickness | 0.0264 in |
| Jacket Color | Beige |
| Length | 15.24 m, 304.8 m |
| Length | 1000 ft |
| Length [x] | 50 ft |
| Number of Conductors | 4 |
| Operating Temperature | 80 °C |
| Ratings | UL Style 2725 |
| Shield Coverage | 100 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Usage | USB 2.0 |
| Voltage | 30 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 17.71 | |
| 1 | $ 250.46 | |||
| 2 | $ 16.89 | |||
| 3 | $ 231.71 | |||
| 5 | $ 223.67 | |||
| 5 | $ 15.81 | |||
| 7 | $ 218.32 | |||
| 10 | $ 212.96 | |||
| 10 | $ 15.09 | |||
| 20 | $ 14.36 | |||
| 25 | $ 199.56 | |||
| 50 | $ 188.85 | |||
| 50 | $ 13.46 | |||
| 100 | $ 12.74 | |||
| 200 | $ 12.20 | |||
| 500 | $ 11.74 | |||
Description
General part information
2725-2828 Series
4 (1 Pair + 2) Conductor Multi-Conductor Cable Beige 28 AWG Foil, Braid 1000.0' (304.8m)
