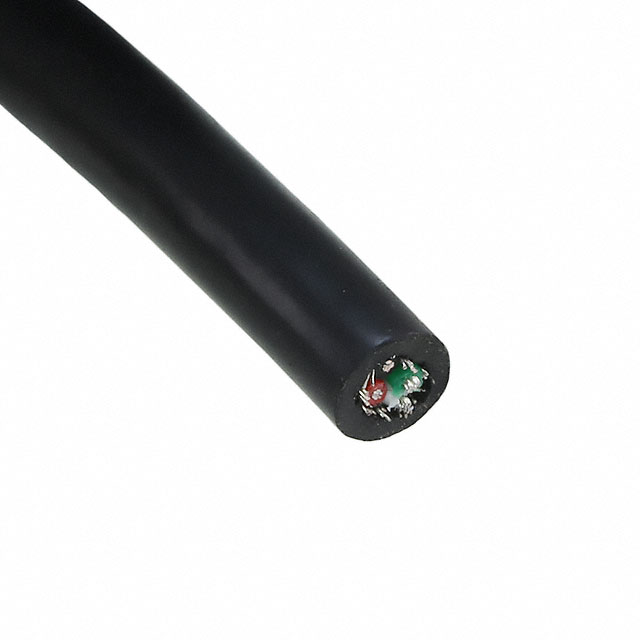

2725-2828-BL-01000-T
ActiveCnC Tech, LLC
CABLE 4COND 28AWG BLK SHLD 1000'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2725-2828-BL-01000-T
ActiveCnC Tech, LLC
CABLE 4COND 28AWG BLK SHLD 1000'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2725-2828-BL-01000-T |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC), High Density Polyethylene (HDPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 0.0047 in |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 3.81 mm |
| Jacket (Insulation) Diameter [diameter] | 0.15 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.671 mm |
| Jacket (Insulation) Thickness | 0.0264 in |
| Jacket Color | Black |
| Length | 15.24 m, 304.8 m |
| Length | 1000 ft |
| Length [x] | 50 ft, 100 ft, 25 ft |
| Length [x] | 30.5 m, 7.62 m |
| Number of Conductors | 4 |
| Operating Temperature | 80 °C |
| Ratings | UL Style 2725 |
| Shield Coverage | 100 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Usage | USB 2.0 |
| Voltage | 30 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 332.60 | |
| 1 | $ 39.37 | |||
| 1 | $ 12.10 | |||
| 1 | $ 22.08 | |||
| 2 | $ 11.52 | |||
| 2 | $ 21.07 | |||
| 3 | $ 36.84 | |||
| 3 | $ 307.70 | |||
| 4 | $ 10.99 | |||
| 5 | $ 19.72 | |||
| 5 | $ 297.03 | |||
| 5 | $ 35.15 | |||
| 7 | $ 289.91 | |||
| 10 | $ 33.47 | |||
| 10 | $ 282.80 | |||
| 10 | $ 10.28 | |||
| 10 | $ 18.82 | |||
| 20 | $ 17.91 | |||
| 20 | $ 9.81 | |||
| 25 | $ 265.01 | |||
| 25 | $ 31.37 | |||
| 40 | $ 9.34 | |||
| 50 | $ 16.79 | |||
| 50 | $ 29.68 | |||
| 100 | $ 28.42 | |||
| 100 | $ 8.75 | |||
| 100 | $ 15.89 | |||
| 200 | $ 8.28 | |||
| 200 | $ 15.21 | |||
| 400 | $ 7.93 | |||
| 500 | $ 14.65 | |||
Description
General part information
2725-2828 Series
4 (1 Pair + 2) Conductor Multi-Conductor Cable Black 28 AWG Foil, Braid 1000.0' (304.8m)
Documents
Technical documentation and resources
