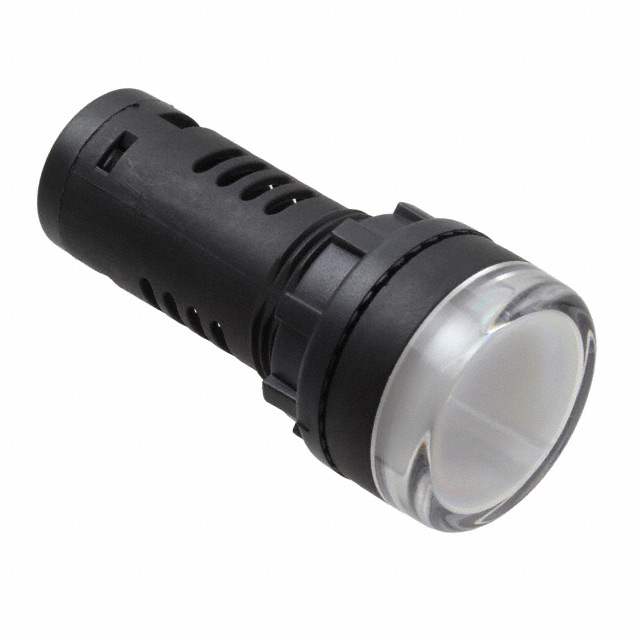

PCL2224V400B
ActiveVisual Communications Company - VCC
PMI RND 22MM LED 24V SCREW BLOCK
Deep-Dive with AI
Search across all available documentation for this part.
PCL2224V400B
ActiveVisual Communications Company - VCC
PMI RND 22MM LED 24V SCREW BLOCK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PCL2224V400B |
|---|---|
| Current | 50 mA |
| Ingress Protection | IP65 |
| Lamp Color | White |
| Lens Color | White |
| Lens Size [diameter] | 29.5 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 75 mcd |
| Panel Cutout Dimensions | 0.88 in |
| Panel Cutout Dimensions | 22.3 mm |
| Panel Cutout Shape | Round |
| Ratings | AC/DC |
| Termination Style | Screw Terminal |
| Type | LED |
| Viewing Angle | 110 ° |
| Voltage | 24 V |
| Wavelength - Peak | 445 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.78 | |
| 15 | $ 8.54 | |||
| 105 | $ 7.06 | |||
| 510 | $ 6.18 | |||
| 1005 | $ 5.84 | |||
Description
General part information
PCL2224 Series
LED Panel Indicator White Diffused 110° 24V 50mA Screw Terminal
