PCL2224V600B
ActiveVisual Communications Company - VCC

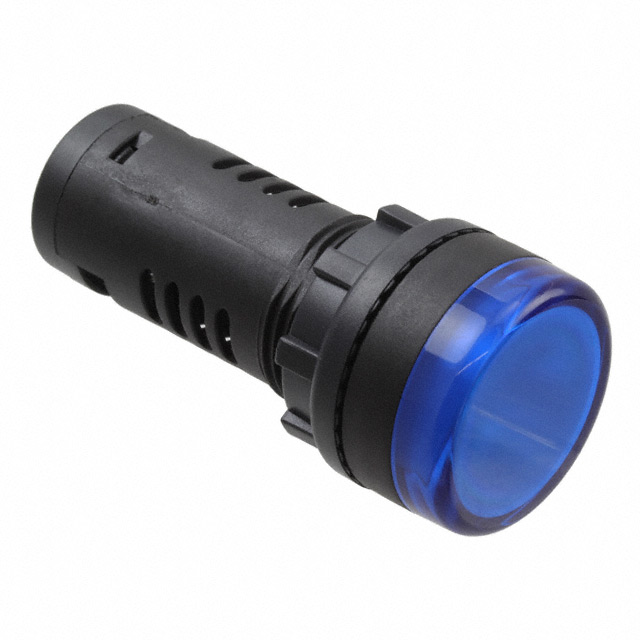

PMI RND 22MM LED 24V SCREW BLOCK
Deep-Dive with AI
Search across all available documentation for this part.
PCL2224V600B
ActiveVisual Communications Company - VCC
PMI RND 22MM LED 24V SCREW BLOCK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PCL2224V600B |
|---|---|
| Current | 50 mA |
| Ingress Protection | IP65 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size [diameter] | 29.5 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 75 mcd |
| Panel Cutout Dimensions | 0.88 in |
| Panel Cutout Dimensions | 22.3 mm |
| Panel Cutout Shape | Round |
| Ratings | AC/DC |
| Termination Style | Screw Terminal |
| Type | LED |
| Viewing Angle | 110 ° |
| Voltage | 24 V |
| Wavelength - Peak | 464 nm |
PCL2224 Series
| Part | Panel Cutout Dimensions | Panel Cutout Dimensions | Wavelength - Peak | Type | Viewing Angle | Lens Size [diameter] | Lamp Color | Voltage | Lens Transparency | Termination Style | Ingress Protection | Panel Cutout Shape | Millicandela Rating | Ratings | Lens Color | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Visual Communications Company - VCC | 0.88 in | 22.3 mm | 464 nm | LED | 110 ° | 29.5 mm | Blue | 24 V | Diffused | Screw Terminal | IP65 | Round | 75 mcd | AC/DC | Blue | 50 mA |
Visual Communications Company - VCC | 0.88 in | 22.3 mm | 445 nm | LED | 110 ° | 29.5 mm | White | 24 V | Diffused | Screw Terminal | IP65 | Round | 75 mcd | AC/DC | White | 50 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.65 | |
| 10 | $ 7.80 | |||
| 100 | $ 6.34 | |||
| 500 | $ 5.76 | |||
| 1000 | $ 5.58 | |||
Description
General part information
PCL2224 Series
LED Panel Indicator Blue Diffused 110° 24V 50mA Screw Terminal
