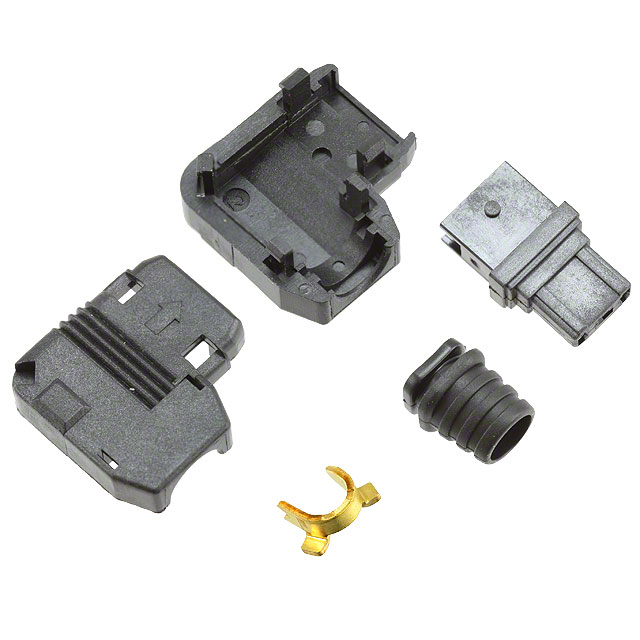

RP34L-5LP-3SC(71)

Hirose Electric USA, Inc.

CONN PLUG HSG 3POS 2.35MM

Search across all available documentation for this part.

Hirose Electric USA, Inc.

CONN PLUG HSG 3POS 2.35MM

Technical Specifications

Parameters and characteristics for this part

Specification	RP34L-5LP-3SC(71)

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Pitch [x]	0.092 in
Pitch [x]	2.35 mm

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Color	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Note	Contact Type	Contact Termination	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Current Rating (Amps)	Features	Insulation Height	Insulation Height	Number of Positions	Contact Material	Contact Finish - Mating	Contact Shape	Shrouding	Contact Length - Post	Contact Length - Post	Fastening Type	Termination	Insulation Color	Pitch - Mating	Pitch - Mating	Style
Hirose Electric USA, Inc. RP34L-5LP-3SC(71)	-10 °C	60 °C	Polyphenylene Sulfide (PPS)	Black	1	0.092 in	2.35 mm	Plug	Contacts Not Included	Female Socket	Crimp	Free Hanging (In-Line) Right Angle
Hirose Electric USA, Inc. RP34L-5R-2PD(71)	-25 °C	85 °C	Nylon Polyamide (PA)		1			Header		Male Pin		Through Hole Right Angle	UL94 V-0	1 µm	39.4 µin	All	5 A	Board Guide Shielded	0.24 in	6.1 mm	2	Brass	Palladium	Square	Shrouded - 4 Wall	2.5 mm	0.098 in	Latch Holder	Solder	Black	0.106 in	2.7 mm	Board to Cable/Wire
Hirose Electric USA, Inc. RP34L-P
Hirose Electric USA, Inc. RP34L-5PA-2SC(1854)F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Plug Black 0.092" (2.35mm)
