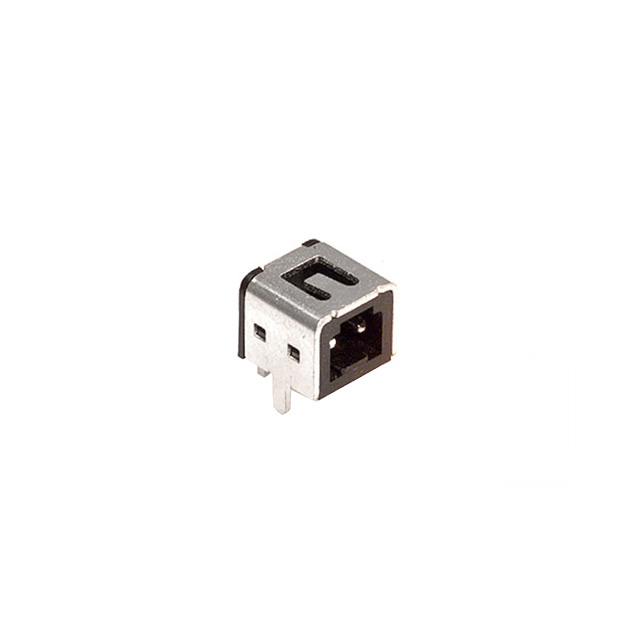

RP34L-5R-2PD(71)

Hirose Electric USA, Inc.

CONN HEADER R/A 2POS 2.7MM

Search across all available documentation for this part.

Hirose Electric USA, Inc.

CONN HEADER R/A 2POS 2.7MM

Technical Specifications

Parameters and characteristics for this part

Specification	RP34L-5R-2PD(71)

Connector Type	Header
Contact Finish - Mating	Palladium
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Latch Holder
Features	Shielded, Board Guide
Insulation Color	Black
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.106 in
Pitch - Mating	2.7 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Color	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Note	Contact Type	Contact Termination	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Current Rating (Amps)	Features	Insulation Height	Insulation Height	Number of Positions	Contact Material	Contact Finish - Mating	Contact Shape	Shrouding	Contact Length - Post	Contact Length - Post	Fastening Type	Termination	Insulation Color	Pitch - Mating	Pitch - Mating	Style
Hirose Electric USA, Inc. RP34L-5LP-3SC(71)	-10 °C	60 °C	Polyphenylene Sulfide (PPS)	Black	1	0.092 in	2.35 mm	Plug	Contacts Not Included	Female Socket	Crimp	Free Hanging (In-Line) Right Angle
Hirose Electric USA, Inc. RP34L-5R-2PD(71)	-25 °C	85 °C	Nylon Polyamide (PA)		1			Header		Male Pin		Through Hole Right Angle	UL94 V-0	1 µm	39.4 µin	All	5 A	Board Guide Shielded	0.24 in	6.1 mm	2	Brass	Palladium	Square	Shrouded - 4 Wall	2.5 mm	0.098 in	Latch Holder	Solder	Black	0.106 in	2.7 mm	Board to Cable/Wire
Hirose Electric USA, Inc. RP34L-P
Hirose Electric USA, Inc. RP34L-5PA-2SC(1854)F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 2.48

General part information

Connector Header Through Hole, Right Angle 2 position 0.106" (2.70mm)
