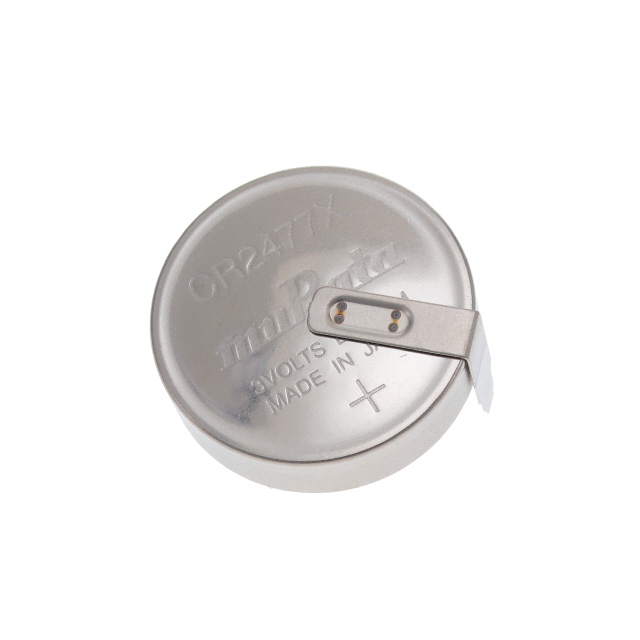

CR2477X-HO

Active

Murata Power Solutions Inc.

BATTERY LITHIUM 3V COIN 24.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CR2477X-HO

Active

Murata Power Solutions Inc.

BATTERY LITHIUM 3V COIN 24.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CR2477X-HO

Battery Cell Size	Coin
Battery Cell Size	24.5 mm
Battery Chemistry	Lithium Manganese Dioxide
Capacity	1 Ah
Size / Dimension [diameter]	0.96 "
Size / Dimension [diameter]	24.5 mm
Size / Dimension [z]	7.7 mm
Size / Dimension [z]	0.3 "
Termination Style	PC Pin (Horizontal Mount)
Voltage - Rated	3 VDC

CR Series

Part	Voltage - Rated	Capacity	Termination Style	Battery Chemistry	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [z]	Battery Cell Size	Battery Cell Size	Size / Dimension [z]	Size / Dimension [diameter]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shipping Info	Discharge Rate
Murata Power Solutions Inc. CR2450X-HO	3 VDC	600 mAh	PC Pin (Horizontal Mount)	Lithium Manganese Dioxide	0.96 "	5 mm 24.5 mm	0.2 "	Coin	24.5 mm
Murata Power Solutions Inc. CR2032W	3 VDC	210 mAh	Requires Holder	Lithium Manganese Dioxide				Coin	20 mm	0.13 in 3.2 mm	0.79 in 20 mm	10 °C	77 °F
Murata Power Solutions Inc. CR2032X	3 VDC	220 mAh	Requires Holder	Lithium Manganese Dioxide				Coin	20 mm	0.13 in 3.2 mm	0.79 in 20 mm	10 °C	77 °F	Due to restrictions only ground shipment is allowed.
Murata Power Solutions Inc. CR3677X	3 VDC	2 Ah	Requires Holder	Lithium Manganese Dioxide	1.44 in		0.3 "	Coin	36.5 mm	7.7 mm	36.5 mm			Due to restrictions only ground shipment is allowed.	3 mA
Murata Power Solutions Inc. CR1616	3 VDC	60 mAh	Requires Holder	Lithium Manganese Dioxide	0.63 in	1.6 mm 16 mm	0.06 "	Coin	16 mm			10 °C	77 °F		100 µA
Murata Power Solutions Inc. CR2450X	3 VDC	600 mAh	Requires Holder	Lithium Manganese Dioxide	0.96 "	5 mm 24.5 mm	0.2 "	Coin	24.5 mm			10 °C	77 °F	Due to restrictions only ground shipment is allowed.
Murata Power Solutions Inc. CR2450W-HO5	3 VDC		PC Pin (Horizontal Mount)	Lithium Manganese Dioxide	0.96 "	5 mm 24.5 mm	0.2 "	Coin	24.5 mm					Due to restrictions only ground shipment is allowed.
Murata Power Solutions Inc. CR2477X-HO	3 VDC	1 Ah	PC Pin (Horizontal Mount)	Lithium Manganese Dioxide	0.96 "		0.3 "	Coin	24.5 mm	7.7 mm	24.5 mm
Murata Power Solutions Inc. CR2025	3 VDC	160 mAh	Requires Holder	Lithium Manganese Dioxide	0.79 in		0.1 "	Coin	20 mm	2.5 mm	20 mm	10 °C	77 °F
Murata Power Solutions Inc. CR2477W	3 VDC	1 Ah	Requires Holder	Lithium Manganese Dioxide	0.96 "		0.3 "	Coin	24.5 mm	7.7 mm	24.5 mm	10 °C	77 °F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.83
		10	$ 2.34
		50	$ 2.06
		125	$ 1.95
		250	$ 1.81
		500	$ 1.72
		1000	$ 1.63
		2500	$ 1.55

Description

General part information

CR Series

Coin, 24.5mm Lithium Manganese Dioxide 3 V Battery Non-Rechargeable (Primary)
