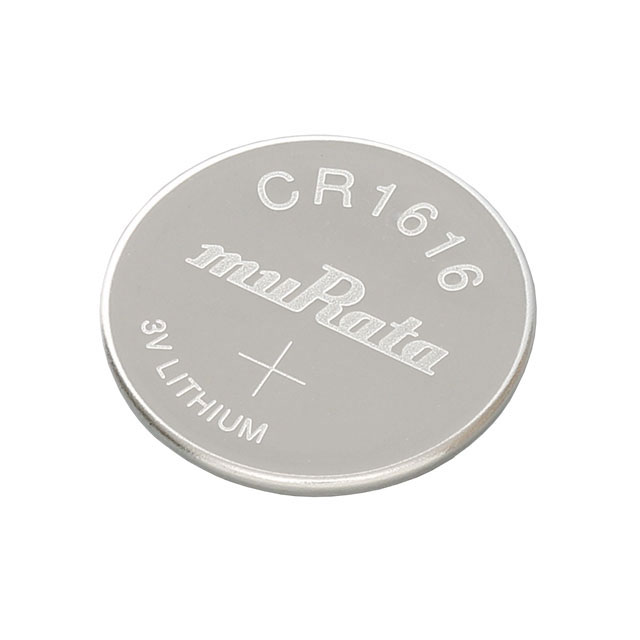

CR1616

Active

Murata Power Solutions Inc.

BATTERY LITHIUM 3V COIN 16MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CR1616

Active

Murata Power Solutions Inc.

BATTERY LITHIUM 3V COIN 16MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CR1616

Battery Cell Size	16 mm
Battery Cell Size	Coin
Battery Chemistry	Lithium Manganese Dioxide
Capacity	60 mAh
Discharge Rate	100 µA
Size / Dimension	1.6 mm, 16 mm
Size / Dimension [diameter]	0.63 in
Size / Dimension [z]	0.06 "
Storage/Refrigeration Temperature [Max]	77 °F
Storage/Refrigeration Temperature [Min]	10 °C
Termination Style	Requires Holder
Voltage - Rated	3 VDC

CR Series

Part	Voltage - Rated	Capacity	Termination Style	Battery Chemistry	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [z]	Battery Cell Size	Battery Cell Size	Size / Dimension [z]	Size / Dimension [diameter]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shipping Info	Discharge Rate
Murata Power Solutions Inc. CR2450X-HO	3 VDC	600 mAh	PC Pin (Horizontal Mount)	Lithium Manganese Dioxide	0.96 "	5 mm 24.5 mm	0.2 "	Coin	24.5 mm
Murata Power Solutions Inc. CR2032W	3 VDC	210 mAh	Requires Holder	Lithium Manganese Dioxide				Coin	20 mm	0.13 in 3.2 mm	0.79 in 20 mm	10 °C	77 °F
Murata Power Solutions Inc. CR2032X	3 VDC	220 mAh	Requires Holder	Lithium Manganese Dioxide				Coin	20 mm	0.13 in 3.2 mm	0.79 in 20 mm	10 °C	77 °F	Due to restrictions only ground shipment is allowed.
Murata Power Solutions Inc. CR3677X	3 VDC	2 Ah	Requires Holder	Lithium Manganese Dioxide	1.44 in		0.3 "	Coin	36.5 mm	7.7 mm	36.5 mm			Due to restrictions only ground shipment is allowed.	3 mA
Murata Power Solutions Inc. CR1616	3 VDC	60 mAh	Requires Holder	Lithium Manganese Dioxide	0.63 in	1.6 mm 16 mm	0.06 "	Coin	16 mm			10 °C	77 °F		100 µA
Murata Power Solutions Inc. CR2450X	3 VDC	600 mAh	Requires Holder	Lithium Manganese Dioxide	0.96 "	5 mm 24.5 mm	0.2 "	Coin	24.5 mm			10 °C	77 °F	Due to restrictions only ground shipment is allowed.
Murata Power Solutions Inc. CR2450W-HO5	3 VDC		PC Pin (Horizontal Mount)	Lithium Manganese Dioxide	0.96 "	5 mm 24.5 mm	0.2 "	Coin	24.5 mm					Due to restrictions only ground shipment is allowed.
Murata Power Solutions Inc. CR2477X-HO	3 VDC	1 Ah	PC Pin (Horizontal Mount)	Lithium Manganese Dioxide	0.96 "		0.3 "	Coin	24.5 mm	7.7 mm	24.5 mm
Murata Power Solutions Inc. CR2025	3 VDC	160 mAh	Requires Holder	Lithium Manganese Dioxide	0.79 in		0.1 "	Coin	20 mm	2.5 mm	20 mm	10 °C	77 °F
Murata Power Solutions Inc. CR2477W	3 VDC	1 Ah	Requires Holder	Lithium Manganese Dioxide	0.96 "		0.3 "	Coin	24.5 mm	7.7 mm	24.5 mm	10 °C	77 °F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.72
		10	$ 0.60
		50	$ 0.53
		100	$ 0.50
		250	$ 0.46
		500	$ 0.44
	Retail Package	5	$ 0.33
		10	$ 0.32
		50	$ 0.31
		100	$ 0.30
		500	$ 0.29
		1000	$ 0.27
		5000	$ 0.25
	Strip	5	$ 1.07
		10	$ 0.62
		100	$ 1.04
		100	$ 0.59
		250	$ 1.00
		250	$ 0.51
		500	$ 0.95
		500	$ 0.48
		1000	$ 0.44
		1000	$ 0.90

Description

General part information

CR Series

Coin, 16.0mm Lithium Manganese Dioxide 3 V Battery Non-Rechargeable (Primary)

Documents

Technical documentation and resources
