CCR28R2KB

Active

TE Connectivity Passive Product

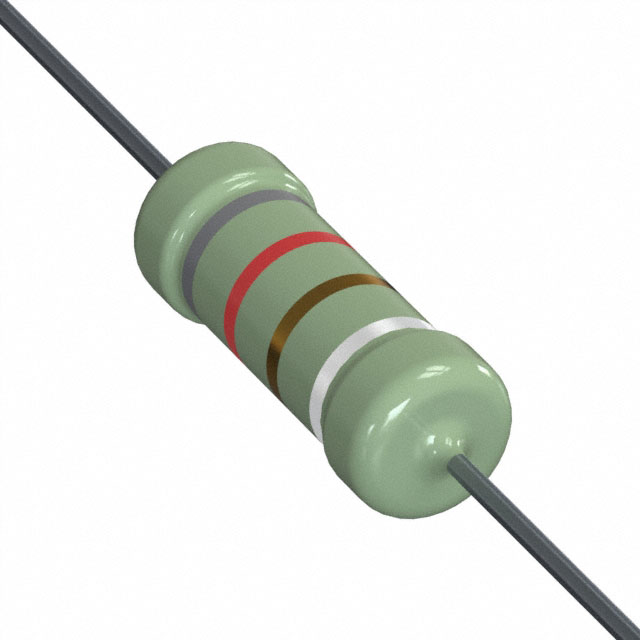

RES 8.2 OHM 10% 2W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

CCR28R2KB

Active

TE Connectivity Passive Product

RES 8.2 OHM 10% 2W AXIAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CCR28R2KB

Composition	Ceramic
Features	Pulse Withstanding
Number of Terminations	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Package / Case	Axial
Power (Watts)	2 W
Size / Dimension [diameter]	0.276 in
Size / Dimension [diameter]	7 mm
Size / Dimension [z]	19 mm
Size / Dimension [z]	0.748 "
Supplier Device Package	Axial
Temperature Coefficient	1300 ppm/°C
Tolerance	10 %

CCR2 Series

Part	Package / Case	Tolerance	Power (Watts)	Number of Terminations	Resistance	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Temperature Coefficient	Composition
TE Connectivity Passive Product CCR215RKB	Axial	10 %	2 W	2	15 Ohms	0.276 in	19 mm	0.748 "	7 mm	Pulse Withstanding	200 °C	-40 °C	Axial	1300 ppm/°C	Ceramic
TE Connectivity Passive Product CCR268RKB	Axial	10 %	2 W	2	68 Ohms	0.276 in	19 mm	0.748 "	7 mm	Pulse Withstanding	200 °C	-40 °C	Axial	1300 ppm/°C	Ceramic
TE Connectivity Passive Product CCR24R7KB	Axial	10 %	2 W	2	4.7 Ohms	0.276 in	19 mm	0.748 "	7 mm	Pulse Withstanding	200 °C	-40 °C	Axial	1300 ppm/°C	Ceramic
TE Connectivity Passive Product CCR23R3KB	Axial	10 %	2 W	2	3.3 Ohms	0.276 in	19 mm	0.748 "	7 mm	Pulse Withstanding	200 °C	-40 °C	Axial	1300 ppm/°C	Ceramic
TE Connectivity Passive Product CCR2470RKB	Axial	10 %	2 W	2	470 Ohms	0.276 in	19 mm	0.748 "	7 mm	Pulse Withstanding	200 °C	-40 °C	Axial	1300 ppm/°C	Ceramic
TE Connectivity Passive Product CCR21K0KB	Axial	10 %	2 W	2	1000 Ohms	0.276 in	19 mm	0.748 "	7 mm	Pulse Withstanding	200 °C	-40 °C	Axial	1300 ppm/°C	Ceramic
TE Connectivity Passive Product CCR28R2KB	Axial	10 %	2 W	2		0.276 in	19 mm	0.748 "	7 mm	Pulse Withstanding	200 °C	-40 °C	Axial	1300 ppm/°C	Ceramic
TE Connectivity Passive Product CCR2220RKT	Axial	10 %	2 W	2	220 Ohms	0.276 in	19 mm	0.748 "	7 mm	Pulse Withstanding	200 °C	-40 °C	Axial	1300 ppm/°C	Ceramic
TE Connectivity Passive Product CCR218RKB	Axial	10 %	2 W	2	18 Ohms	0.276 in	19 mm	0.748 "	7 mm	Pulse Withstanding	200 °C	-40 °C	Axial	1300 ppm/°C	Ceramic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.31

Description

General part information

CCR2 Series

8.2 Ohms ±10% 2W Through Hole Resistor Axial Pulse Withstanding Ceramic

Documents

Technical documentation and resources

No documents available
