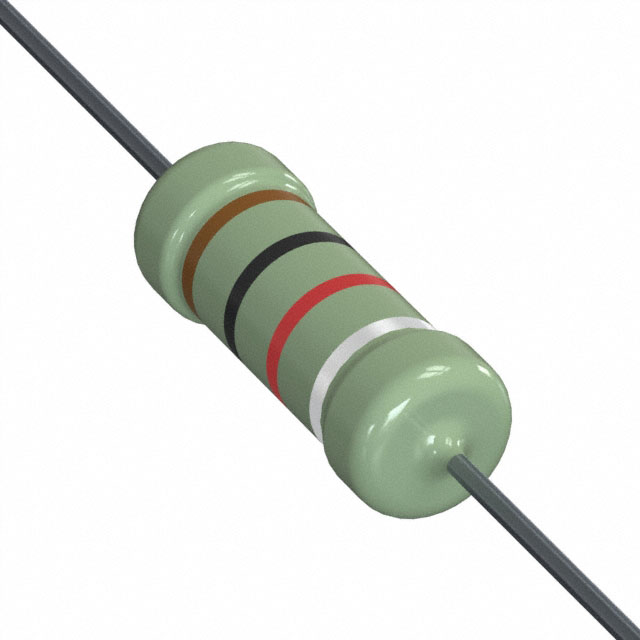

CCR21K0KB
ActiveTE Connectivity Passive Product
RES 1K OHM 10% 2W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
CCR21K0KB
ActiveTE Connectivity Passive Product
RES 1K OHM 10% 2W AXIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CCR21K0KB |
|---|---|
| Composition | Ceramic |
| Features | Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Axial |
| Power (Watts) | 2 W |
| Resistance | 1000 Ohms |
| Size / Dimension [diameter] | 0.276 in |
| Size / Dimension [diameter] | 7 mm |
| Size / Dimension [z] | 19 mm |
| Size / Dimension [z] | 0.748 " |
| Supplier Device Package | Axial |
| Temperature Coefficient | 1300 ppm/°C |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.13 | |
| 10 | $ 2.64 | |||
| 25 | $ 2.58 | |||
| 50 | $ 2.42 | |||
| 100 | $ 2.01 | |||
| 250 | $ 1.82 | |||
| 500 | $ 1.51 | |||
| 1000 | $ 1.31 | |||
| 5000 | $ 1.27 | |||
Description
General part information
CCR2 Series
1 kOhms ±10% 2W Through Hole Resistor Axial Pulse Withstanding Ceramic
Documents
Technical documentation and resources
No documents available
