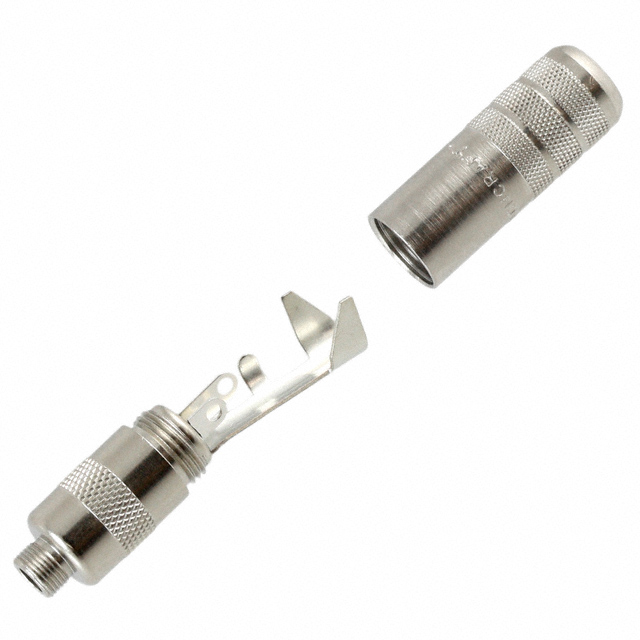

35LJNS
ActiveSwitchcraft Inc.
CONN 3.5MM AUDIO JACK F 2 POS ST CABLE MOUNT 2 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
35LJNS
ActiveSwitchcraft Inc.
CONN 3.5MM AUDIO JACK F 2 POS ST CABLE MOUNT 2 TERMINAL 1 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 35LJNS |
|---|---|
| Actual Diameter [diameter] | 3.57 mm |
| Actual Diameter [diameter] | 0.141 in |
| Body Color | Silver |
| Body Material | Copper Alloy |
| Cable Opening [diameter] | 0.175 in |
| Cable Opening [diameter] | 4.44 mm |
| Connector Type | Phone Jack |
| Contact Material | Beryllium Copper |
| Contact Material - Plating [custom] | Silver |
| Gender | Female |
| Housing Material | Copper Alloy |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder Eyelet(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.82 | |
| 10 | $ 12.25 | |||
| 25 | $ 11.78 | |||
| 50 | $ 11.31 | |||
| 100 | $ 10.68 | |||
| 300 | $ 9.74 | |||
| 500 | $ 9.11 | |||
| 1000 | $ 8.36 | |||
Description
General part information
35LJN Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
