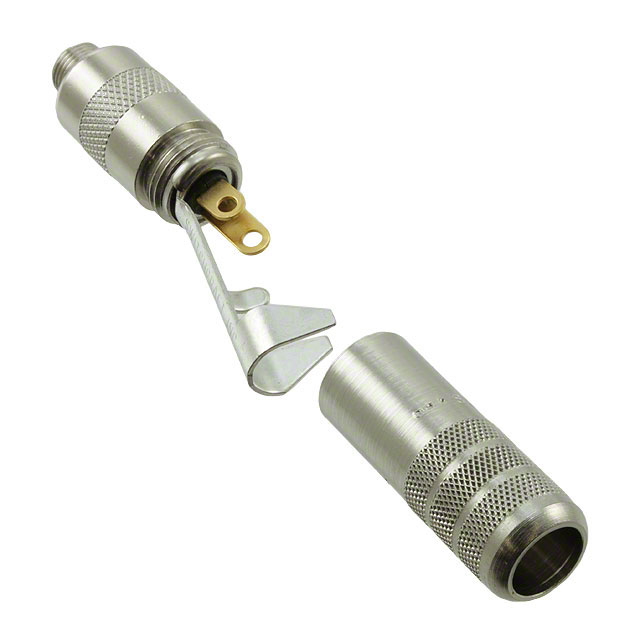

35LJNAU

Active

Switchcraft Inc.

CONN JACK STEREO 3.5MM

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 3.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	35LJNAU

Actual Diameter [diameter]	3.57 mm
Actual Diameter [diameter]	0.141 in
Body Color	Silver
Body Material	Copper Alloy
Cable Opening [custom]	7.37 mm
Cable Opening [custom]	0.29 in
Connector Type	Phone Jack
Contact Material	Beryllium Copper
Contact Material - Plating [custom]	Silver
Gender	Female
Housing Material	Copper Alloy
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)

Part	Body Material	Body Color	Gender	Cable Opening [diameter]	Cable Opening [diameter]	Contact Material - Plating [custom]	Shielding	Housing Material	Termination	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Mounting Type	Contact Material	Connector Type	Signal Lines	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. 35LJNS	Copper Alloy	Silver	Female	0.175 in	4.44 mm	Silver	Unshielded	Copper Alloy	Solder Eyelet(s)	3	3	3.57 mm	0.141 in	Free Hanging (In-Line)	Beryllium Copper	Phone Jack	Stereo	0.141 "	0.125 "	3.5 mm
Switchcraft Inc. 35LJNAU	Copper Alloy	Silver	Female			Silver	Unshielded	Copper Alloy	Solder Eyelet(s)	3	3	3.57 mm	0.141 in	Free Hanging (In-Line)	Beryllium Copper	Phone Jack	Stereo	0.141 "	0.125 "	3.5 mm	7.37 mm	0.29 in
Switchcraft Inc. 35LJNAUS	Copper Alloy	Silver	Female	0.175 in	4.44 mm	Gold	Unshielded	Copper Alloy	Solder Eyelet(s)	3	3	3.57 mm	0.141 in	Free Hanging (In-Line)	Beryllium Copper	Phone Jack	Stereo	0.141 "	0.125 "	3.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
