09140009909

Active

HARTING Technology Group

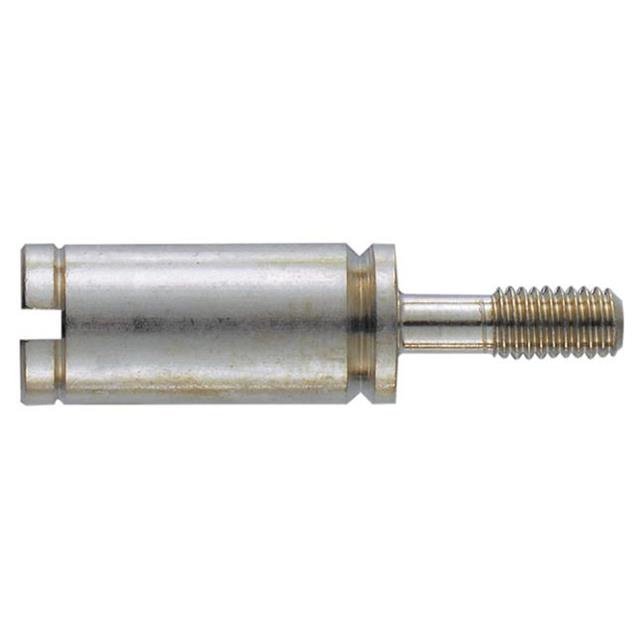

HAN-MODULAR GUIDING BUSH ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-MODULAR GUIDING BUSH ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09140009909

Accessory Type	Guide Bushing
For Use With/Related Products	Han-Modular® Housings
Specifications	M3 Thread

Part	For Use With/Related Products	Accessory Type	Specifications
HARTING Technology Group 09140009807	Han® Shielded Power Module	GND Adapter	Male
HARTING Technology Group 09140009990	Han-Modular® Hinged Frames	Guide Element	Gray
HARTING Technology Group 09140009909	Han-Modular® Housings	Guide Bushing	M3 Thread
HARTING Technology Group 09140009933	Han-Modular® DB9 Modules	Dummy Module	Female
HARTING Technology Group 09140009935	Han-Modular® Twin Inserts	Coding Pin	Female
HARTING Technology Group 09140009901	Han-Modular® Modules	Coding Pin	M3 Thread
HARTING Technology Group 09140009992	Han-Modular® Hinged Frames	Guide Element	Blue
HARTING Technology Group 09140009912	Han-Modular® Modules	Cable Shoe
HARTING Technology Group 09140009915	Han-Quintax® Modules	Adapter - Metal
HARTING Technology Group 09140009944		Gasket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Guide Bushing
