09140009901

Active

HARTING Technology Group

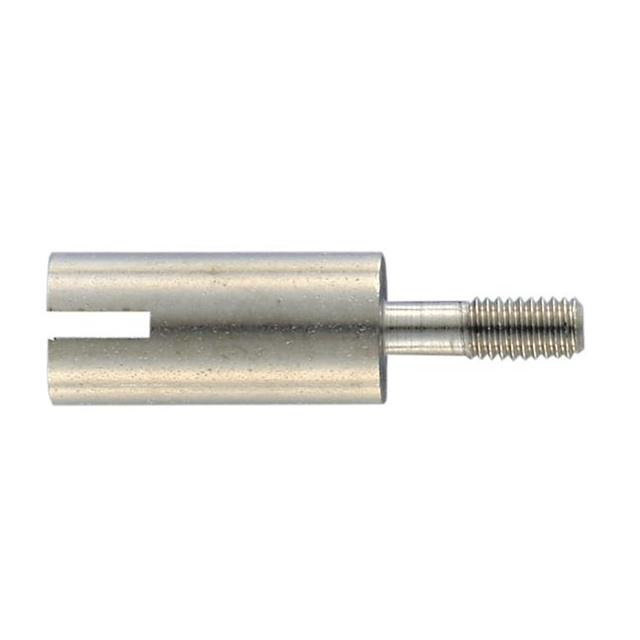

CODING PIN, INDUSTRIAL CONNECTOR

Search across all available documentation for this part.

Active

HARTING Technology Group

CODING PIN, INDUSTRIAL CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	09140009901

Accessory Type	Coding Pin
For Use With/Related Products	Han-Modular® Modules
Specifications	M3 Thread

Part	For Use With/Related Products	Accessory Type	Specifications
HARTING Technology Group 09140009807	Han® Shielded Power Module	GND Adapter	Male
HARTING Technology Group 09140009990	Han-Modular® Hinged Frames	Guide Element	Gray
HARTING Technology Group 09140009909	Han-Modular® Housings	Guide Bushing	M3 Thread
HARTING Technology Group 09140009933	Han-Modular® DB9 Modules	Dummy Module	Female
HARTING Technology Group 09140009935	Han-Modular® Twin Inserts	Coding Pin	Female
HARTING Technology Group 09140009901	Han-Modular® Modules	Coding Pin	M3 Thread
HARTING Technology Group 09140009992	Han-Modular® Hinged Frames	Guide Element	Blue
HARTING Technology Group 09140009912	Han-Modular® Modules	Cable Shoe
HARTING Technology Group 09140009915	Han-Quintax® Modules	Adapter - Metal
HARTING Technology Group 09140009944		Gasket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Coding Pin
