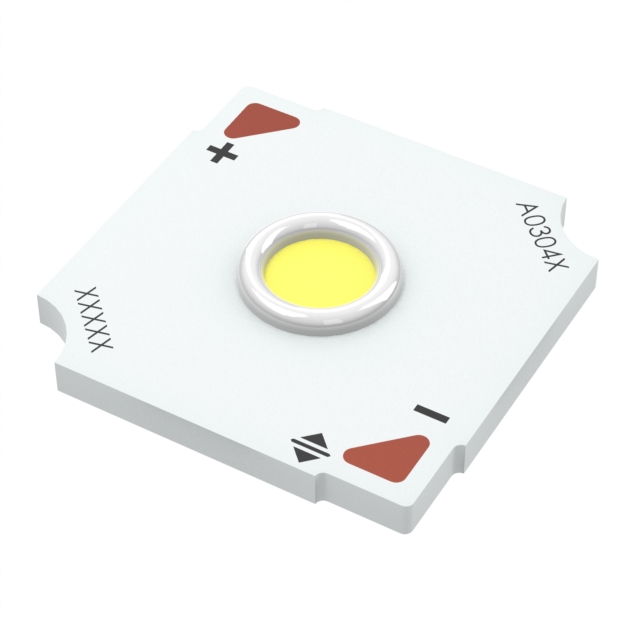

CHA0304-R160-000G0H0A40G

Active

Cree LED

XLAMP CHA LIGHT EMITTING DIODE WHITE

Search across all available documentation for this part.

Active

Cree LED

XLAMP CHA LIGHT EMITTING DIODE WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	CHA0304-R160-000G0H0A40G

CCT (K)	4000 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	300 mA
Current - Test	175 mA
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	3.3 mm
Luminous Flux @ Current/Temperature	475 lm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	114 °
Voltage - Forward (Vf) (Typ)	21 V

Part	Light Emitting Surface (LES) [diameter]	Type	CRI (Color Rendering Index)	Height [z]	Temperature - Test	Color	Configuration	Viewing Angle	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Lens Type	CCT (K)	Current - Test	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature
Cree LED CHA0304-R160-00PG0Z0A40H	3.3 mm	Chip On Board (COB)	95	1.5 mm	85 °C	Neutral White	Square	114 °	300 mA	21 V	Flat	4000 K	175 mA
Cree LED CHA0304-R160-00PG0U0A30U	3.3 mm	Chip On Board (COB)	90	1.5 mm	85 °C	Warm White	Square	114 °	300 mA	21 V	Flat		175 mA
Cree LED CHA0304-R160-00PG0Z0AL7C	3.3 mm	Chip On Board (COB)	95	1.5 mm	85 °C		Square	114 °	300 mA	21 V	Flat		175 mA
Cree LED CHA0304-R160-00PG0U0A31Q	3.3 mm	Chip On Board (COB)	90	1.5 mm	85 °C	Warm White	Square	114 °	300 mA	21 V	Flat	3100 K	175 mA
Cree LED CHA0304-0000-000G0H0A30H	3.3 mm	Chip On Board (COB)	80	1.5 mm	85 °C	Warm White	Square	114 °	300 mA	21 V	Flat	3000 K	175 mA	122 lm/W
Cree LED CHA0304-R160-00PG0U0A27G	3.3 mm	Chip On Board (COB)	90	1.5 mm	85 °C	Warm White	Square	114 °	300 mA	21 V	Flat	2700 K	175 mA
Cree LED CHA0304-R160-00PG0Z0A27H	3.3 mm	Chip On Board (COB)	95	1.5 mm	85 °C	Warm White	Square	114 °	300 mA	21 V	Flat	2700 K	175 mA
Cree LED CHA0304-R160-00PG0U0A30G	3.3 mm	Chip On Board (COB)	90	1.5 mm	85 °C	Warm White	Square	114 °	300 mA	21 V	Flat		175 mA
Cree LED CHA0304-R160-000G0H0A40G	3.3 mm	Chip On Board (COB)	80	1.5 mm	85 °C	Neutral White	Square	114 °	300 mA	21 V	Flat	4000 K	175 mA		475 lm
Cree LED CHA0304-R160-00PG0U0A40H	3.3 mm	Chip On Board (COB)	90	1.5 mm	85 °C	Neutral White	Square	114 °	300 mA	21 V	Flat	4000 K	175 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CHA0304 White, Neutral Square
