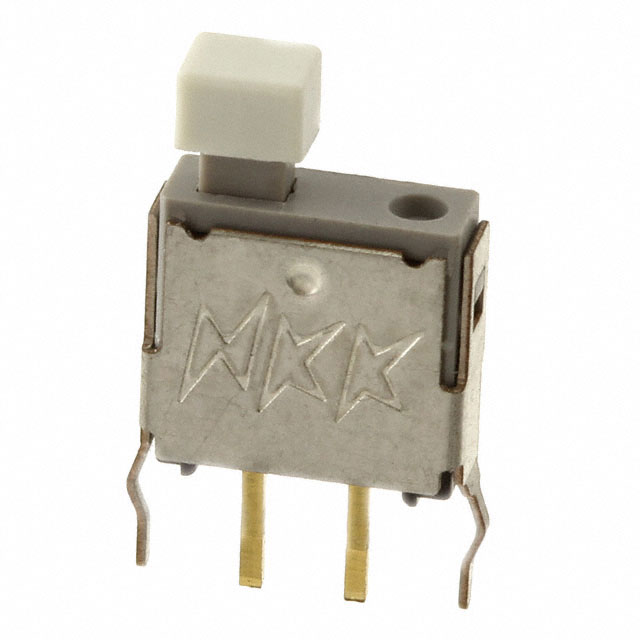

GB215AB-B
ActiveNKK Switches
SWITCH PUSH SPST-NO 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GB215AB-B
ActiveNKK Switches
SWITCH PUSH SPST-NO 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GB215AB-B |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
GB215A Series
| Part | Electrical Life | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Actuator Type | Mounting Type | Termination Style | Features | Current Rating (Amps) | Voltage Rating - DC | Switch Function | Actuator Marking | Voltage Rating - AC | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 50000 Cycles | SPST-NO | 70 °C | -25 °C | White | Rectangular Button | Through Hole Right Angle | PC Pin | Epoxy Sealed Terminals | 0.4 VA | 28 V | Off-Mom | No Marking | 28 V | Standard |
NKK Switches | 50000 Cycles | SPST-NO | 70 °C | -25 °C | Black | Rectangular Button | Through Hole | PC Pin | Epoxy Sealed Terminals | 0.4 VA | 28 V | Off-Mom | No Marking | 28 V | Standard |
NKK Switches | 50000 Cycles | SPST-NO x 2 | 70 °C | -25 °C | Red White | Rectangular Button | Through Hole Right Angle | PC Pin | Epoxy Sealed Terminals | 0.4 VA | 28 V | Off-Mom | No Marking | 28 V | Standard |
NKK Switches | 50000 Cycles | SPST-NO x 2 | 70 °C | -25 °C | Black | Rectangular Button | Through Hole Right Angle | PC Pin | Epoxy Sealed Terminals | 0.4 VA | 28 V | Off-Mom | No Marking | 28 V | Standard |
NKK Switches | 50000 Cycles | SPST-NO | 70 °C | -25 °C | Plunger for Cap | Through Hole | PC Pin | Epoxy Sealed Terminals | 0.4 VA | 28 V | Off-Mom | No Marking | 28 V | Standard | |
NKK Switches | 50000 Cycles | SPST-NO | 70 °C | -25 °C | Red | Rectangular Button | Through Hole Right Angle | PC Pin | Epoxy Sealed Terminals | 0.4 VA | 28 V | Off-Mom | No Marking | 28 V | Standard |
NKK Switches | 50000 Cycles | SPST-NO | 70 °C | -25 °C | Black | Rectangular Button | Through Hole Right Angle | PC Pin | Epoxy Sealed Terminals | 0.4 VA | 28 V | Off-Mom | No Marking | 28 V | Standard |
NKK Switches | 50000 Cycles | SPST-NO | 70 °C | -25 °C | White | Rectangular Button | Through Hole | PC Pin | Epoxy Sealed Terminals | 0.4 VA | 28 V | Off-Mom | No Marking | 28 V | Standard |
NKK Switches | 50000 Cycles | SPST-NO x 2 | 70 °C | -25 °C | Black Red | Rectangular Button | Through Hole Right Angle | PC Pin | Epoxy Sealed Terminals | 0.4 VA | 28 V | Off-Mom | No Marking | 28 V | Standard |
NKK Switches | 50000 Cycles | SPST-NO | 70 °C | -25 °C | Plunger for Cap | Through Hole Right Angle | PC Pin | Epoxy Sealed Terminals | 0.4 VA | 28 V | Off-Mom | No Marking | 28 V | Standard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
GB215A Series
Pushbutton Switch SPST-NO Standard Through Hole
