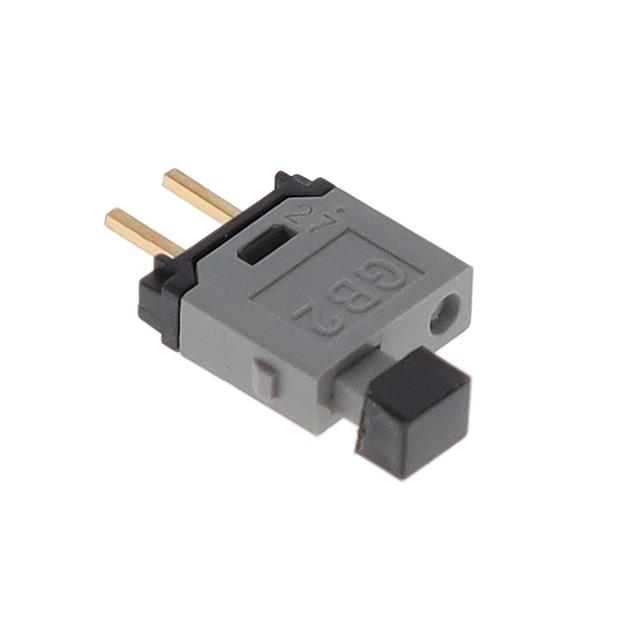

GB215AP-A

Active

NKK Switches

SWITCH PUSH SPST-NO 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

GB215AP-A

Active

NKK Switches

SWITCH PUSH SPST-NO 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GB215AP-A

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

GB215A Series

Part	Electrical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Actuator Type	Mounting Type	Termination Style	Features	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Actuator Marking	Voltage Rating - AC	Type
NKK Switches GB215AH-B	50000 Cycles	SPST-NO	70 °C	-25 °C	White	Rectangular Button	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215AP-A	50000 Cycles	SPST-NO	70 °C	-25 °C	Black	Rectangular Button	Through Hole	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215A2H-BC	50000 Cycles	SPST-NO x 2	70 °C	-25 °C	Red White	Rectangular Button	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215A2H-AA	50000 Cycles	SPST-NO x 2	70 °C	-25 °C	Black	Rectangular Button	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215AB	50000 Cycles	SPST-NO	70 °C	-25 °C		Plunger for Cap	Through Hole	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215AH-C	50000 Cycles	SPST-NO	70 °C	-25 °C	Red	Rectangular Button	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215AH-A	50000 Cycles	SPST-NO	70 °C	-25 °C	Black	Rectangular Button	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215AB-B	50000 Cycles	SPST-NO	70 °C	-25 °C	White	Rectangular Button	Through Hole	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215A2H-AC	50000 Cycles	SPST-NO x 2	70 °C	-25 °C	Black Red	Rectangular Button	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard
NKK Switches GB215AH	50000 Cycles	SPST-NO	70 °C	-25 °C		Plunger for Cap	Through Hole Right Angle	PC Pin	Epoxy Sealed Terminals	0.4 VA	28 V	Off-Mom	No Marking	28 V	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.83
		10	$ 3.42
		25	$ 3.24
		40	$ 3.13
		80	$ 2.96
		230	$ 2.83
		440	$ 2.60
		945	$ 2.49
Newark	Each	1	$ 7.88
		10	$ 7.57
		25	$ 7.34
		50	$ 6.79
		100	$ 6.19
		250	$ 5.44
		500	$ 4.87
		1000	$ 4.58

Description

General part information

GB215A Series

Pushbutton Switch SPST-NO Standard Through Hole
