3180-2SG-530
ActiveConxall/Switchcraft

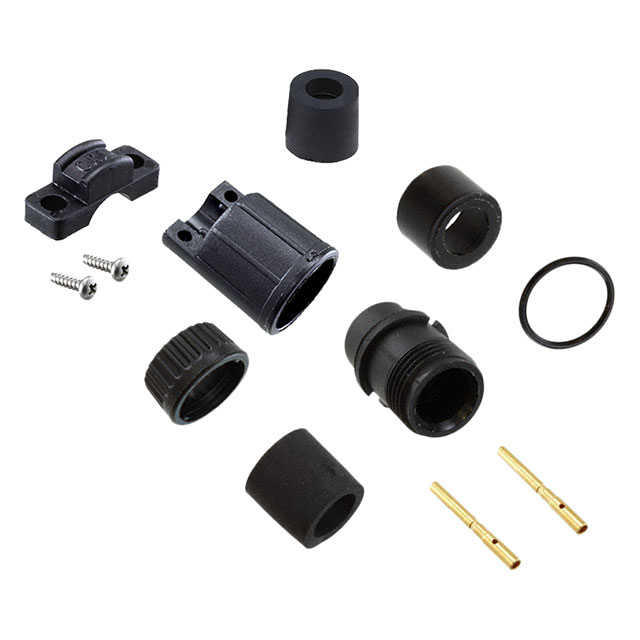

CONN PLUG FMALE 2POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3180-2SG-530
ActiveConxall/Switchcraft
CONN PLUG FMALE 2POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3180-2SG-530 |
|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [diameter] | 0.32 in |
| Cable Opening [Max] [diameter] | 8.13 mm |
| Cable Opening [Min] [diameter] | 7.62 mm |
| Cable Opening [Min] [diameter] | 0.3 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Backshell |
| Ingress Protection | Weathertight |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600 V |
3180-2S Series
| Part | Shielding | Contact Material | Color | Contact Finish - Mating | Number of Positions | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Orientation | Termination | Ingress Protection | Fastening Type | Mounting Type | Backshell Material, Plating | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Voltage Rating | Primary Material | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft | Unshielded | Brass | Black | Gold | 2 | Female Sockets Plug | -40 °C | 115 °C | Backshell | Keyed | Crimp | Weathertight | Bayonet Lock | Free Hanging (In-Line) | Nylon Polyamide (PA) | 7.62 mm | 0.32 in | 8.13 mm | 0.3 in | 600 V | Plastic | |||||||
Conxall/Switchcraft | Unshielded | Brass | Black | Gold | 2 | Female Sockets Plug | -40 °C | 115 °C | Backshell | Keyed | Crimp | Weathertight | Bayonet Lock | Free Hanging (In-Line) | Nylon Polyamide (PA) | 600 V | Plastic | 0.15 in 0.17 in | 3.81 mm 4.32 mm | |||||||||
Conxall/Switchcraft | Unshielded | Brass | Black | Gold | 2 | Female Sockets Plug | -40 °C | 115 °C | Backshell Cable Clamp | Keyed | Crimp | Weathertight | Bayonet Lock | Free Hanging (In-Line) | Nylon Polyamide (PA) | 5.33 mm | 0.23 in | 0.21 in | 600 V | Plastic | 5.84 mm | |||||||
Conxall/Switchcraft | Unshielded | Brass | Black | Gold | 2 | Female Sockets Plug | -40 °C | 115 °C | Backshell | Keyed | Crimp | Weathertight | Bayonet Lock | Free Hanging (In-Line) | Nylon Polyamide (PA) | 5.33 mm | 0.23 in | 0.21 in | 600 V | Plastic | 5.84 mm | |||||||
Conxall/Switchcraft | Unshielded | Brass | Black | Gold | 2 | Female Sockets Plug | -40 °C | 115 °C | Backshell Cable Clamp | Keyed | Crimp | Weathertight | Bayonet Lock | Free Hanging (In-Line) | Nylon Polyamide (PA) | 600 V | Plastic | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||||
Conxall/Switchcraft | Unshielded | Brass | Black | Gold | 2 | Female Sockets Plug | -40 °C | 115 °C | Backshell Cable Clamp | Keyed | Crimp | Weathertight | Bayonet Lock | Free Hanging (In-Line) | Nylon Polyamide (PA) | 7.62 mm | 0.32 in | 8.13 mm | 0.3 in | 600 V | Plastic | |||||||
Conxall/Switchcraft | Unshielded | Brass | Black | Gold | 2 | Female Sockets Plug | -40 °C | 115 °C | Backshell Cable Clamp | Keyed | Crimp | Weathertight | Bayonet Lock | Free Hanging (In-Line) | Nylon Polyamide (PA) | 6.1 mm | 0.27 in | 0.24 in | 600 V | Plastic | 6.86 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 9.49 | |
Description
General part information
3180-2S Series
2 Position Circular Connector Plug, Female Sockets Crimp
