3180-2SG-330

Active

Conxall/Switchcraft

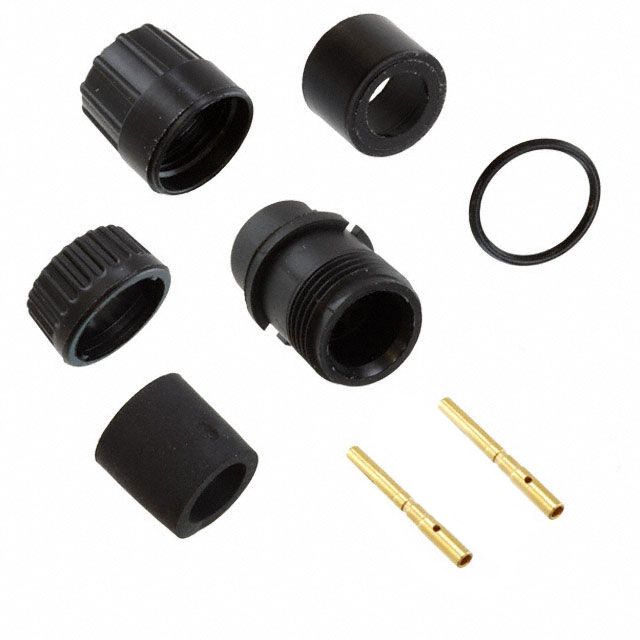

CONN PLUG FMALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3180-2SG-330

Active

Conxall/Switchcraft

CONN PLUG FMALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3180-2SG-330

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.32 in
Cable Opening [Max] [diameter]	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm
Cable Opening [Min] [diameter]	0.3 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

3180-2S Series

Part	Shielding	Contact Material	Color	Contact Finish - Mating	Number of Positions	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Orientation	Termination	Ingress Protection	Fastening Type	Mounting Type	Backshell Material, Plating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Voltage Rating	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 3180-2SG-330	Unshielded	Brass	Black	Gold	2	Female Sockets Plug	-40 °C	115 °C	Backshell	Keyed	Crimp	Weathertight	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	7.62 mm	0.32 in	8.13 mm	0.3 in	600 V	Plastic
Conxall/Switchcraft 3180-2SG-315	Unshielded	Brass	Black	Gold	2	Female Sockets Plug	-40 °C	115 °C	Backshell	Keyed	Crimp	Weathertight	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)					600 V	Plastic	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3180-2SG-521	Unshielded	Brass	Black	Gold	2	Female Sockets Plug	-40 °C	115 °C	Backshell Cable Clamp	Keyed	Crimp	Weathertight	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	5.33 mm	0.23 in		0.21 in	600 V	Plastic			5.84 mm
Conxall/Switchcraft 3180-2SG-321	Unshielded	Brass	Black	Gold	2	Female Sockets Plug	-40 °C	115 °C	Backshell	Keyed	Crimp	Weathertight	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	5.33 mm	0.23 in		0.21 in	600 V	Plastic			5.84 mm
Conxall/Switchcraft 3180-2SG-518	Unshielded	Brass	Black	Gold	2	Female Sockets Plug	-40 °C	115 °C	Backshell Cable Clamp	Keyed	Crimp	Weathertight	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)					600 V	Plastic				4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3180-2SG-530	Unshielded	Brass	Black	Gold	2	Female Sockets Plug	-40 °C	115 °C	Backshell Cable Clamp	Keyed	Crimp	Weathertight	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	7.62 mm	0.32 in	8.13 mm	0.3 in	600 V	Plastic
Conxall/Switchcraft 3180-2SG-524	Unshielded	Brass	Black	Gold	2	Female Sockets Plug	-40 °C	115 °C	Backshell Cable Clamp	Keyed	Crimp	Weathertight	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	6.1 mm	0.27 in		0.24 in	600 V	Plastic			6.86 mm
