VLM-520-01 LPA
ActiveQuarton Inc.

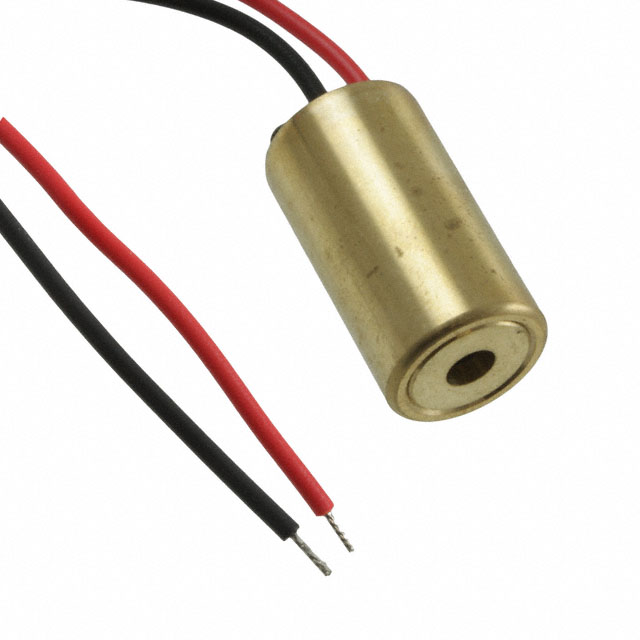

LASER DIODE 520NM 4MW 10.4MM DIA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VLM-520-01 LPA
ActiveQuarton Inc.
LASER DIODE 520NM 4MW 10.4MM DIA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VLM-520-01 LPA |
|---|---|
| Current Rating (Amps) | 100 mA |
| Package / Case | Cylinder |
| Package / Case [diameter] | 10.4 mm |
| Power (Watts) | 4 mW |
| Voltage - Input [Max] | 10 V |
| Voltage - Input [Min] | 7 V |
| Wavelength | 520 nm |
VLM-520 Series
| Part | Package / Case | Package / Case [diameter] | Wavelength | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Current Rating (Amps) | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|
Quarton Inc. | Cylinder | 8.5 mm | 520 nm | 3 V | 7 V | |||
Quarton Inc. | Cylinder | 7 mm | 520 nm | 7 V | 10 V | 1 mW | 80 mA | |
Quarton Inc. | Cylinder | 10 mm | 520 nm | 3 V | 7 V | 0.9 mW | 100 mA | |
Quarton Inc. | Measurements | |||||||
Quarton Inc. | Cylinder | 10.5 mm | 520 nm | 3 V | 7 V | 4 mW | 100 mA | |
Quarton Inc. | Cylinder | 8 mm | 520 nm | 3 V | 7 V | 1 mW | 100 mA | |
Quarton Inc. | Cylinder | 9 mm | 520 nm | 7 V | 10 V | 1 mW | 80 mA | |
Quarton Inc. | Cylinder | 8 mm | 520 nm | 3 V | 7 V | 4 mW | 100 mA | |
Quarton Inc. | Cylinder | 10.4 mm | 520 nm | 7 V | 10 V | 4 mW | 100 mA | |
Quarton Inc. | Cylinder | 6.5 mm | 520 nm | 3 V | 6 V | 1 mW |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.95 | |
Description
General part information
VLM-520 Series
Laser Diode 520nm 4mW 7V ~ 10V 100mA Cylinder (10.4mm Dia)
Documents
Technical documentation and resources
