VLM-520-03 LPT

Active

Quarton Inc.

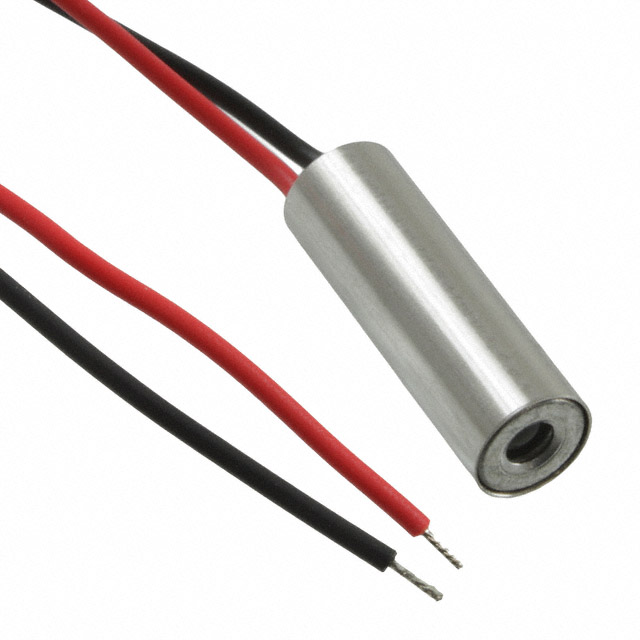

LASER DIODE 520NM 1MW 7MM DIA

Search across all available documentation for this part.

Active

Quarton Inc.

LASER DIODE 520NM 1MW 7MM DIA

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case [diameter]	Wavelength	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Current Rating (Amps)	For Use With/Related Products
Quarton Inc. VLM-520-52 LPB	Cylinder	8.5 mm	520 nm	3 V	7 V
Quarton Inc. VLM-520-03 LPT	Cylinder	7 mm	520 nm	7 V	10 V	1 mW	80 mA
Quarton Inc. VLM-520-55 LPT	Cylinder	10 mm	520 nm	3 V	7 V	0.9 mW	100 mA
Quarton Inc. VLM-520-ML200								Measurements
Quarton Inc. VLM-520-53 LPA	Cylinder	10.5 mm	520 nm	3 V	7 V	4 mW	100 mA
Quarton Inc. VLM-520-51 LPT	Cylinder	8 mm	520 nm	3 V	7 V	1 mW	100 mA
Quarton Inc. VLM-520-29 LPT	Cylinder	9 mm	520 nm	7 V	10 V	1 mW	80 mA
Quarton Inc. VLM-520-51 LPA	Cylinder	8 mm	520 nm	3 V	7 V	4 mW	100 mA
Quarton Inc. VLM-520-01 LPA	Cylinder	10.4 mm	520 nm	7 V	10 V	4 mW	100 mA
Quarton Inc. VLM-520-74 LPT	Cylinder	6.5 mm	520 nm	3 V	6 V	1 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.70

General part information

Laser Diode 520nm 1mW 7V ~ 10V 80mA Cylinder (7.0mm Dia)

Technical documentation and resources
