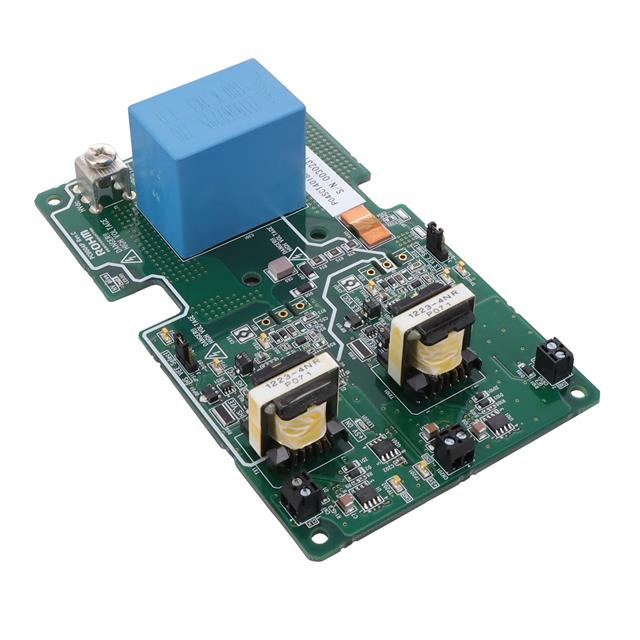

P04SCT4018KE-EVK-001

Active

Rohm Semiconductor

EVALUATION BOARD, SCT4018KE, SIC MOSFET, HALF-BRIDGE GATE DRIVER

Search across all available documentation for this part.

Active

Rohm Semiconductor

EVALUATION BOARD, SCT4018KE, SIC MOSFET, HALF-BRIDGE GATE DRIVER

Technical Specifications

Parameters and characteristics for this part

Specification	P04SCT4018KE-EVK-001

Contents	Board(s)
Embedded	False
Function	Half H-Bridge Driver (External FET)
Secondary Attributes	On-Board LEDs
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	SCT4018KE

Part	Supplied Contents	Type	Secondary Attributes	Function	Utilized IC / Part	Contents	Vgs (Max) [Min]	Vgs (Max) [Max]	Operating Temperature	Gate Charge (Qg) (Max) @ Vgs [Max]	Power Dissipation (Max) [Max]	Package / Case	Rds On (Max) @ Id, Vgs	Mounting Type	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Drain to Source Voltage (Vdss)	FET Type	Drive Voltage (Max Rds On, Min Rds On)
Rohm Semiconductor P05SCT4018KR-EVK-001	Board(s)	Power Management	On-Board LEDs	Half H-Bridge Driver (External FET)	SCT4018KR	Board(s)
Rohm Semiconductor P04SCT4018KE-EVK-001	Board(s)	Power Management	On-Board LEDs	Half H-Bridge Driver (External FET)	SCT4018KE	Board(s)
Rohm Semiconductor SCT4018KRC15							-4 V	21 V	175 °C	170 nC	312 W	TO-247-4	23.4 mOhm	Through Hole	4.8 V	4532 pF	TO-247-4L	1200 V	N-Channel	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 357.14
Newark	Each	1	$ 399.21

General part information

SCT4018KE - Half H-Bridge Driver (External FET) Power Management Evaluation Board
