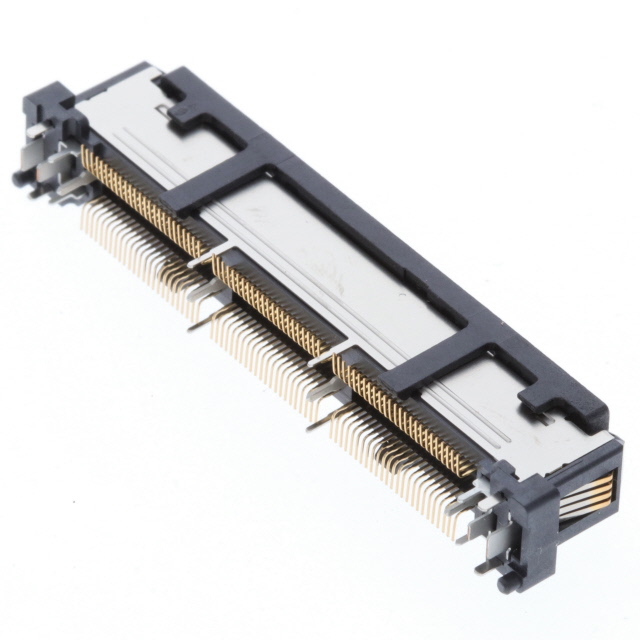

WD2M144WB2R300
ActiveJAE Electronics
CONN PLUG 144POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
WD2M144WB2R300
ActiveJAE Electronics
CONN PLUG 144POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WD2M144WB2R300 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 11.8 Áin |
| Features | Solder Retention, Board Guide |
| Mounting Type | Surface Mount |
| Number of Positions | 148 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 24.47 | |
| 10 | $ 20.79 | |||
| 25 | $ 19.49 | |||
| 50 | $ 19.10 | |||
| 100 | $ 18.28 | |||
| Tape & Reel (TR) | 300 | $ 16.36 | ||
| 600 | $ 15.61 | |||
Description
General part information
WD2M144W Series
148 (144 + 4 Power) Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Documents
Technical documentation and resources
No documents available
