WD2M144WB1R300

Obsolete

JAE Electronics

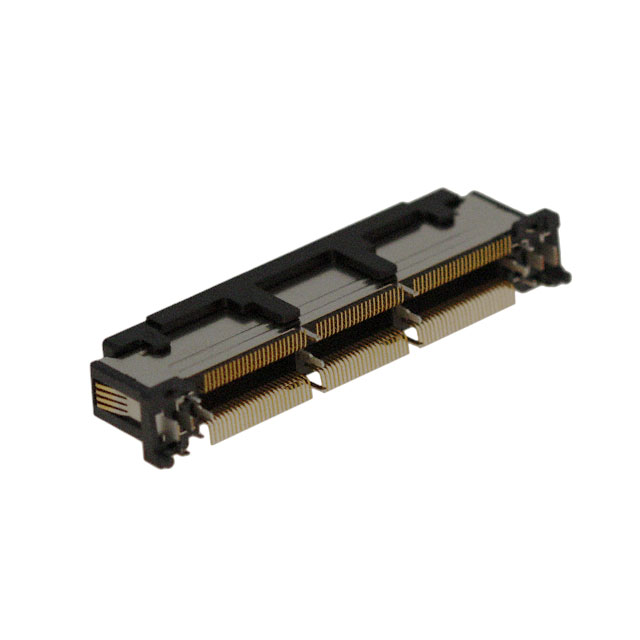

CONN PLUG 144POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN PLUG 144POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WD2M144WB1R300

Connector Type	Outer Shroud Contacts, Plug
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Features	Solder Retention, Board Guide
Height Above Board	12 mm
Height Above Board	0.472 in
Mated Stacking Heights	17.9 mm
Mounting Type	Surface Mount
Number of Positions	148
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Features	Number of Positions	Contact Finish	Number of Rows	Mated Stacking Heights	Height Above Board	Height Above Board
JAE Electronics WD2M144WB2R300	0.3 Ám	11.8 Áin	Outer Shroud Contacts Plug	Surface Mount	0.5 mm	0.02 in	Board Guide Solder Retention	148	Gold	2
JAE Electronics WD2M144WB1R300	0.3 Ám	11.8 Áin	Outer Shroud Contacts Plug	Surface Mount	0.5 mm	0.02 in	Board Guide Solder Retention	148	Gold	2	17.9 mm	12 mm	0.472 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

148 (144 + 4 Power) Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
