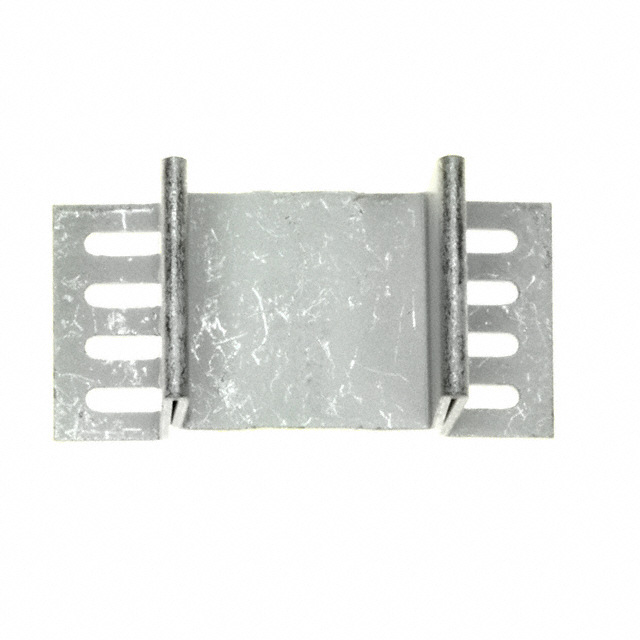

573300D00000G

Active

Boyd Laconia, LLC

TOP MOUNT HEATSINK .4" D2PAK

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

TOP MOUNT HEATSINK .4" D2PAK

Technical Specifications

Parameters and characteristics for this part

Specification	573300D00000G

Attachment Method	SMD Pad
Fin Height	0.4 "
Fin Height	10.16 mm
Length	0.5 in
Length	12.7 mm
Material	Aluminum
Material Finish	Tin
Package Cooled [custom]	TO-263
Package Cooled [custom]	D²Pak
Power Dissipation @ Temperature Rise	1.3 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	8 °C/W, 300 LFM
Thermal Resistance @ Natural	18 °C/W
Type	Top Mount
Width	26.16 mm
Width [x]	1.03 in

Part	Shape	Thermal Resistance @ Natural	Length	Length	Material	Width	Width [x]	Power Dissipation @ Temperature Rise	Type	Attachment Method	Material Finish	Fin Height	Fin Height	Thermal Resistance @ Forced Air Flow	Package Cooled [custom]	Package Cooled [custom]
Boyd Laconia, LLC 573300D00000G	Rectangular Fins	18 °C/W	0.5 in	12.7 mm	Aluminum	26.16 mm	1.03 in	1.3 W	Top Mount	SMD Pad	Tin	0.4 "	10.16 mm	8 °C/W 300 LFM	TO-263	D²Pak

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-263 (D²Pak) Aluminum 1.3W @ 30°C Top Mount
