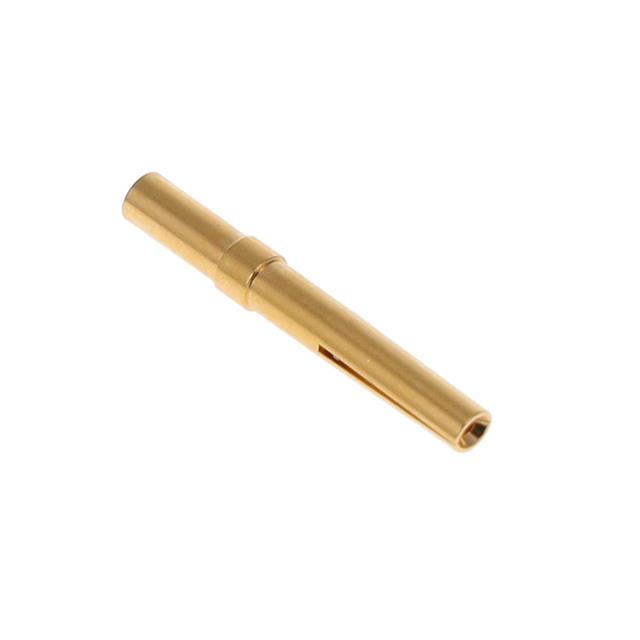

XS2U-2222
ActiveOmron Electronics Inc-EMC Div
CONTACT SOCKET 18-20AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
XS2U-2222
ActiveOmron Electronics Inc-EMC Div
CONTACT SOCKET 18-20AWG CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XS2U-2222 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Material | Copper Alloy |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Termination Finish | Nickel |
| Type | Signal, Machined |
| Wire Gauge or Range - AWG [Max] | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 18 AWG |
| Wire Gauge or Range - mm² [Max] | 0.75 mm² |
| Wire Gauge or Range - mm² [Min] | 0.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.09 | |
| 10 | $ 0.94 | |||
| 25 | $ 0.90 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.84 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.71 | |||
Description
General part information
XS2U Series
Socket Contact 18-20 AWG Size Crimp Gold
