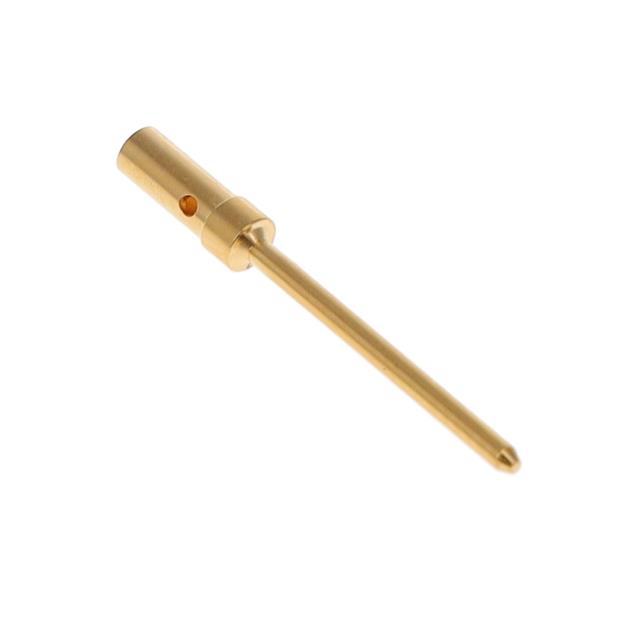

XS2U-3122
ActiveOmron Electronics Inc-EMC Div
CONTACT PIN 18-20AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
XS2U-3122
ActiveOmron Electronics Inc-EMC Div
CONTACT PIN 18-20AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XS2U-3122 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Material | Copper Alloy |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Termination Finish | Nickel |
| Type | Signal, Machined |
| Wire Gauge or Range - AWG [Max] | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 18 AWG |
| Wire Gauge or Range - mm² [Max] | 0.75 mm² |
| Wire Gauge or Range - mm² [Min] | 0.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.79 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.63 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.49 | |||
| 2500 | $ 0.47 | |||
Description
General part information
XS2U Series
Pin Contact 18-20 AWG Size Crimp Gold
