SBT-70-WCS-F75-NB123

Obsolete

Luminus Devices Inc.

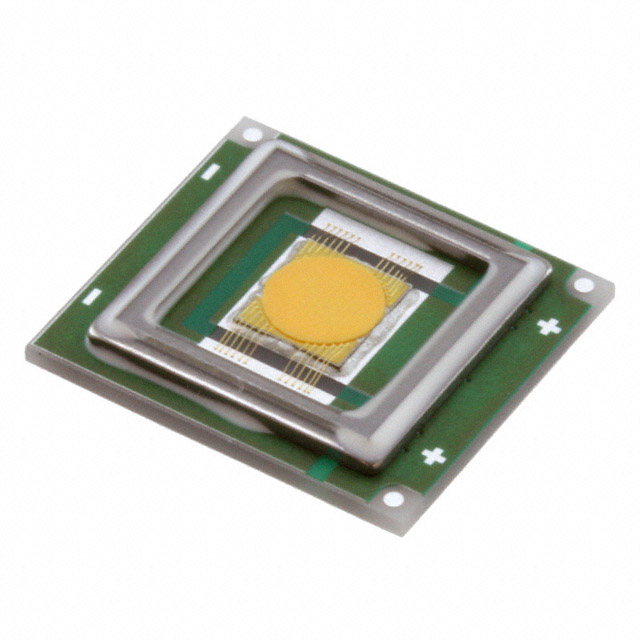

LED SBT-70 COOL WHITE 7770K 2SMD

Search across all available documentation for this part.

Obsolete

Luminus Devices Inc.

LED SBT-70 COOL WHITE 7770K 2SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SBT-70-WCS-F75-NB123

CCT (K)	7770 K
Color	Cool, White
Current - Max [Max]	10.5 A
Current - Test	10.5 A
Flux @ 25°C, Current - Test	1770 lm
Flux @ 25°C, Current - Test [Max]	1830 lm
Flux @ 25°C, Current - Test [Min]	1710 lm
Lumens/Watt @ Current - Test	46 lm/W
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead Exposed Pad
Size / Dimension [x]	11 mm
Size / Dimension [x]	0.433 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Thermal Resistance of Package [custom]	0.7 °C/W
Voltage - Forward (Vf) (Typ)	3.7 V

Part	Color	Current - Test	Luminous Flux @ Current/Temperature	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Thermal Resistance of Package [custom]	Voltage - Forward (Vf) (Typ)	Mounting Type	Wavelength [Max]	Wavelength [Min]	Lumens/Watt @ Current - Test	Supplier Device Package	Package / Case	Wavelength	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	CCT (K)
Luminus Devices Inc. SBT-70-B-F75-KF300	Blue	10.5 A	200 lm	10.5 A	11 mm	0.433 in	10 mm	0.394 in	0.64 °C/W	3.8 V	Surface Mount	455 nm	435 nm	5 lm/W	SMD	0404
Luminus Devices Inc. SBT-70-B-F75-KF301	Blue	10.5 A	200 lm	10.5 A	11 mm	0.433 in	10 mm	0.394 in	0.64 °C/W	3.8 V	Surface Mount			5 lm/W	SMD	0404	445 nm
Luminus Devices Inc. SBT-70-G-F75-JK200	Green	10.5 A	2100 lm	14 A	11 mm	0.433 in	10 mm	0.394 in	0.64 °C/W	4.5 V	Surface Mount	540 nm	520 nm	44 lm/W	SMD	0404	530 nm
Luminus Devices Inc. SBT-70-WCS-F75-NB123	Cool White	10.5 A		10.5 A	11 mm	0.433 in	10 mm	0.394 in	0.7 °C/W	3.7 V	Surface Mount			46 lm/W		2-SMD No Lead Exposed Pad		1830 lm	1770 lm	1710 lm	7770 K
Luminus Devices Inc. SBT-70-G-F75-JM202	Green	10.5 A	2100 lm	14 A	11 mm	0.433 in	10 mm	0.394 in	0.64 °C/W	4.5 V	Surface Mount	540 nm	530 nm	44 lm/W	SMD	0404	535 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting SBT-70 White, Cool 7770K 3.7V 10.5A 2-SMD, No Lead Exposed Pad
