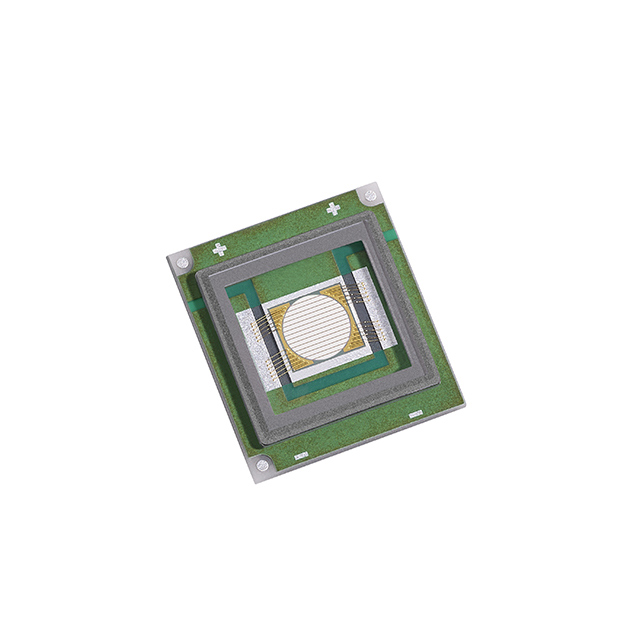

SBT-70-G-F75-JK200

Obsolete

Luminus Devices Inc.

LED SBT70 GREEN 530NM SMD

Search across all available documentation for this part.

Obsolete

Luminus Devices Inc.

LED SBT70 GREEN 530NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SBT-70-G-F75-JK200

Color	Green
Current - Max [Max]	14 A
Current - Test	10.5 A
Lumens/Watt @ Current - Test	44 lm/W
Luminous Flux @ Current/Temperature	2100 lm
Mounting Type	Surface Mount
Package / Case	0404
Size / Dimension [x]	11 mm
Size / Dimension [x]	0.433 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	0.64 °C/W
Voltage - Forward (Vf) (Typ)	4.5 V
Wavelength	530 nm
Wavelength [Max]	540 nm
Wavelength [Min]	520 nm

Part	Color	Current - Test	Luminous Flux @ Current/Temperature	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Thermal Resistance of Package [custom]	Voltage - Forward (Vf) (Typ)	Mounting Type	Wavelength [Max]	Wavelength [Min]	Lumens/Watt @ Current - Test	Supplier Device Package	Package / Case	Wavelength	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	CCT (K)
Luminus Devices Inc. SBT-70-B-F75-KF300	Blue	10.5 A	200 lm	10.5 A	11 mm	0.433 in	10 mm	0.394 in	0.64 °C/W	3.8 V	Surface Mount	455 nm	435 nm	5 lm/W	SMD	0404
Luminus Devices Inc. SBT-70-B-F75-KF301	Blue	10.5 A	200 lm	10.5 A	11 mm	0.433 in	10 mm	0.394 in	0.64 °C/W	3.8 V	Surface Mount			5 lm/W	SMD	0404	445 nm
Luminus Devices Inc. SBT-70-G-F75-JK200	Green	10.5 A	2100 lm	14 A	11 mm	0.433 in	10 mm	0.394 in	0.64 °C/W	4.5 V	Surface Mount	540 nm	520 nm	44 lm/W	SMD	0404	530 nm
Luminus Devices Inc. SBT-70-WCS-F75-NB123	Cool White	10.5 A		10.5 A	11 mm	0.433 in	10 mm	0.394 in	0.7 °C/W	3.7 V	Surface Mount			46 lm/W		2-SMD No Lead Exposed Pad		1830 lm	1770 lm	1710 lm	7770 K
Luminus Devices Inc. SBT-70-G-F75-JM202	Green	10.5 A	2100 lm	14 A	11 mm	0.433 in	10 mm	0.394 in	0.64 °C/W	4.5 V	Surface Mount	540 nm	530 nm	44 lm/W	SMD	0404	535 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color SBT-70 Green 530nm (520nm ~ 540nm) 0404 (1010 Metric)
