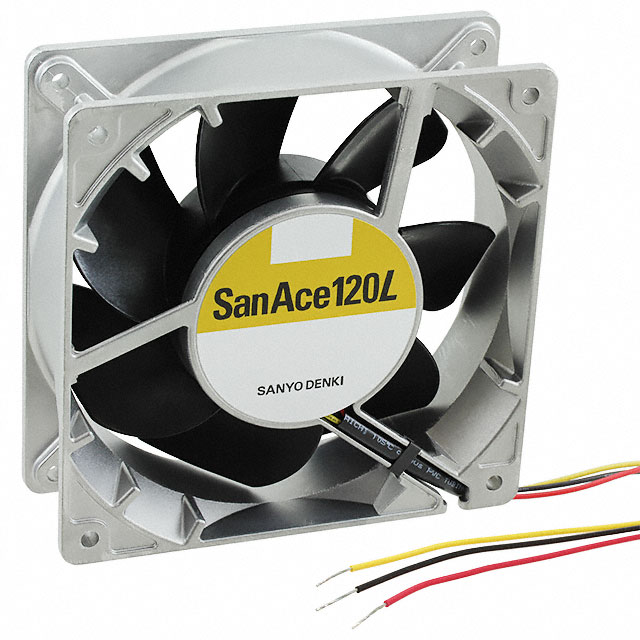

9LG1224F1D001

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System Long Life Fan

9LG1224F1D001

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System Long Life Fan

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9LG1224F1D001

Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Material - Blade	Plastic
Material - Frame	Aluminum
Power (Watts)	4.56 W
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Width [y]	38 mm

9LG1224 Series

Part	Material - Frame	Features	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Fan Type	Bearing Type	Width [y]	Voltage - Rated	Material - Blade	Termination	Air Flow	Air Flow	Static Pressure	Static Pressure	Weight	Weight	Approval Agency	Current Rating (Amps)	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Min]	Voltage Range [Max]	Noise	RPM
Sanyo Denki America Inc. 9LG1224A1001	Aluminum	Locked Rotor Protection Speed Sensor (Tach)	120 mm	120 mm	8.88 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads
Sanyo Denki America Inc. 9LG1224P1H001	Aluminum	Locked Rotor Protection PWM Control Speed Sensor (Tach)	119 mm	119 mm	16.8 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	4 Wire Leads	176.6 CFM	4.94 m³/min	189.3 Pa	0.76 in H2O	420.03 g	0.926 lb	CSA TUV UL	0.7 A	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	15 VDC	30 V	54 dB
Sanyo Denki America Inc. 9LG1224A1002	Aluminum		120 mm	120 mm	8.88 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	2 Wire Leads
Sanyo Denki America Inc. 9LG1224P1S001	Aluminum	Locked Rotor Protection PWM Control Speed Sensor (Tach)	119 mm	119 mm	26.4 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	4 Wire Leads	211.8 CFM	5.93 m³/min	269 Pa	1.08 in H2O	420.03 g	0.926 lb	CSA TUV UL	1.1 A	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	15 VDC	30 V	58 dB(A)	5600 RPM
Sanyo Denki America Inc. 9LG1224F1001	Aluminum	Locked Rotor Protection Speed Sensor (Tach)	120 mm	120 mm	4.56 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads
Sanyo Denki America Inc. 9LG1224G1D001	Aluminum	Locked Rotor Sensor	120 mm	120 mm	38.4 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads	247 CFM	6.92 m³/min	368.7 Pa	1.48 in H2O	420.03 g	0.926 lb	CSA TUV UL	1.6 A	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	15 VDC	30 V	62 dB(A)	6550 RPM
Sanyo Denki America Inc. 9LG1224F1D001	Aluminum	Locked Rotor Sensor	120 mm	120 mm	4.56 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads
Sanyo Denki America Inc. 9LG1224F1002	Aluminum		120 mm	120 mm	4.56 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	2 Wire Leads
Sanyo Denki America Inc. 9LG1224H1D001	Aluminum	Locked Rotor Sensor	120 mm	120 mm	16.8 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads	176.6 CFM	4.94 m³/min	189.3 Pa	0.76 in H2O	420.03 g	0.926 lb	CSA TUV UL	0.7 A	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	15 VDC	30 V	54 dB
Sanyo Denki America Inc. 9LG1224M1002	Aluminum		120 mm	120 mm	2.64 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	2 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 94.61
		21	$ 85.03
		42	$ 83.83
		63	$ 78.44
		105	$ 76.65
