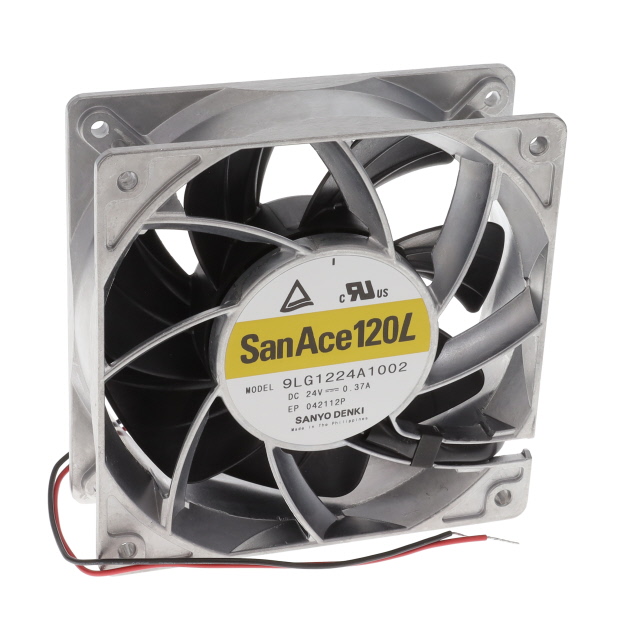

9LG1224A1002

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Numbering System Long Life Fan +1

9LG1224A1002

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Numbering System Long Life Fan +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9LG1224A1002

Bearing Type	Ball
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Aluminum
Power (Watts)	8.88 W
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Width [y]	38 mm

9LG1224 Series

Part	Material - Frame	Features	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Fan Type	Bearing Type	Width [y]	Voltage - Rated	Material - Blade	Termination	Air Flow	Air Flow	Static Pressure	Static Pressure	Weight	Weight	Approval Agency	Current Rating (Amps)	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Min]	Voltage Range [Max]	Noise	RPM
Sanyo Denki America Inc. 9LG1224A1001	Aluminum	Locked Rotor Protection Speed Sensor (Tach)	120 mm	120 mm	8.88 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads
Sanyo Denki America Inc. 9LG1224P1H001	Aluminum	Locked Rotor Protection PWM Control Speed Sensor (Tach)	119 mm	119 mm	16.8 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	4 Wire Leads	176.6 CFM	4.94 m³/min	189.3 Pa	0.76 in H2O	420.03 g	0.926 lb	CSA TUV UL	0.7 A	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	15 VDC	30 V	54 dB
Sanyo Denki America Inc. 9LG1224A1002	Aluminum		120 mm	120 mm	8.88 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	2 Wire Leads
Sanyo Denki America Inc. 9LG1224P1S001	Aluminum	Locked Rotor Protection PWM Control Speed Sensor (Tach)	119 mm	119 mm	26.4 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	4 Wire Leads	211.8 CFM	5.93 m³/min	269 Pa	1.08 in H2O	420.03 g	0.926 lb	CSA TUV UL	1.1 A	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	15 VDC	30 V	58 dB(A)	5600 RPM
Sanyo Denki America Inc. 9LG1224F1001	Aluminum	Locked Rotor Protection Speed Sensor (Tach)	120 mm	120 mm	4.56 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads
Sanyo Denki America Inc. 9LG1224G1D001	Aluminum	Locked Rotor Sensor	120 mm	120 mm	38.4 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads	247 CFM	6.92 m³/min	368.7 Pa	1.48 in H2O	420.03 g	0.926 lb	CSA TUV UL	1.6 A	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	15 VDC	30 V	62 dB(A)	6550 RPM
Sanyo Denki America Inc. 9LG1224F1D001	Aluminum	Locked Rotor Sensor	120 mm	120 mm	4.56 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads
Sanyo Denki America Inc. 9LG1224F1002	Aluminum		120 mm	120 mm	4.56 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	2 Wire Leads
Sanyo Denki America Inc. 9LG1224H1D001	Aluminum	Locked Rotor Sensor	120 mm	120 mm	16.8 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads	176.6 CFM	4.94 m³/min	189.3 Pa	0.76 in H2O	420.03 g	0.926 lb	CSA TUV UL	0.7 A	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	15 VDC	30 V	54 dB
Sanyo Denki America Inc. 9LG1224M1002	Aluminum		120 mm	120 mm	2.64 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	2 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 96.01
		21	$ 82.48
		42	$ 79.67
		63	$ 78.08
		105	$ 76.11
