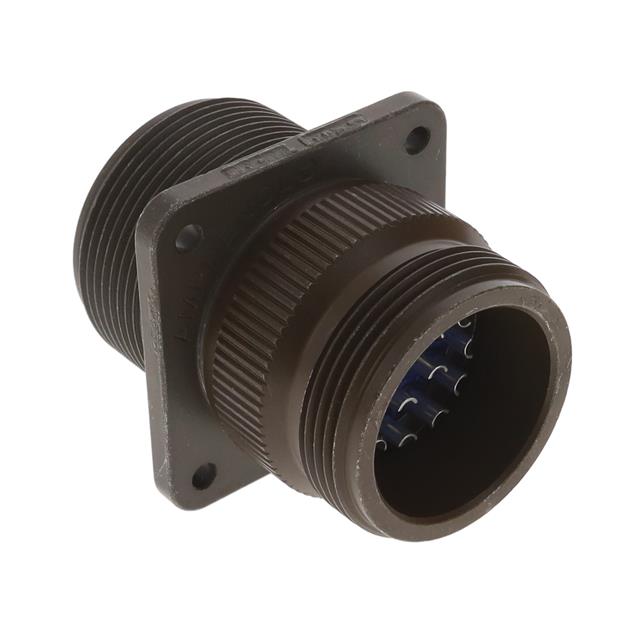

97-3100A-20-29S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 17P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
97-3100A-20-29S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 17P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 97-3100A-20-29S |
|---|---|
| Applications | Industrial, Automotive |
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Features | Backshell |
| Insert Material | Diallyl Phthalate (DAP) |
| Mounting Feature | Flange |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert [Max] | 29 |
| Shell Size - Insert [Min] | 20 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.61 | |
| 10 | $ 33.67 | |||
| 25 | $ 31.56 | |||
| 50 | $ 30.06 | |||
| 100 | $ 28.62 | |||
| 250 | $ 26.83 | |||
Description
General part information
97-3100A20 Series
17 Position Circular Connector Receptacle, Female Sockets Solder Cup
