97-3100A-20-16P

Active

Amphenol Industrial Operations

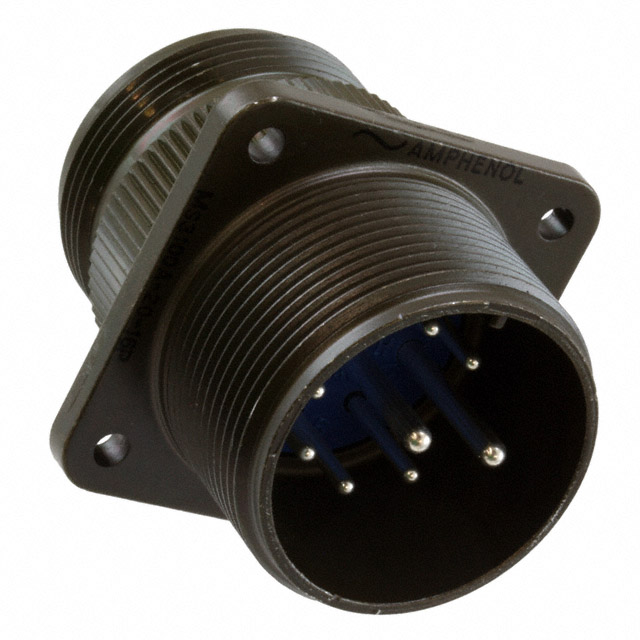

CONN RCPT MALE 9P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN RCPT MALE 9P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	97-3100A-20-16P

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Backshell
Insert Material	Diallyl Phthalate (DAP)
Mounting Feature	Flange
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max] [diameter]	20
Shell Size - Insert [Min] [diameter]	16
Shielding	Unshielded

Part	Features	Orientation	Number of Positions	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]	Primary Material	Shell Material	Applications	Contact Material	Connector Type	Shielding	Contact Finish - Mating	Shell Finish	Color	Shell Size - Insert [Max]	Shell Size - Insert [Min]
Amphenol Industrial Operations 97-3100A-20-16P	Backshell	N	9	Diallyl Phthalate (DAP)	-55 °C	125 °C	Flange	20	16	Metal	Aluminum Alloy	Automotive Industrial	Copper Alloy	Male Pins Receptacle	Unshielded	Silver	Olive Drab Chromate over Cadmium	Olive Drab
Amphenol Industrial Operations 97-3100A-20-29S	Backshell	N		Diallyl Phthalate (DAP)	-55 °C	125 °C	Flange			Metal	Aluminum Alloy	Automotive Industrial	Copper Alloy	Receptacle Female Sockets	Unshielded	Silver	Olive Drab Chromate over Cadmium	Olive Drab	29	20
Amphenol Industrial Operations 97-3100A-20-19P	Backshell	N		Diallyl Phthalate (DAP)	-55 °C	125 °C	Flange			Metal	Aluminum Alloy	Automotive Industrial	Copper Alloy	Male Pins Receptacle	Unshielded	Silver	Olive Drab Chromate over Cadmium	Olive Drab	19	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	41	$ 32.79

General part information

9 Position Circular Connector Receptacle, Male Pins Solder Cup
