BM10B(0.8)-30DP-0.4V(75)

Obsolete

Hirose Electric USA, Inc.

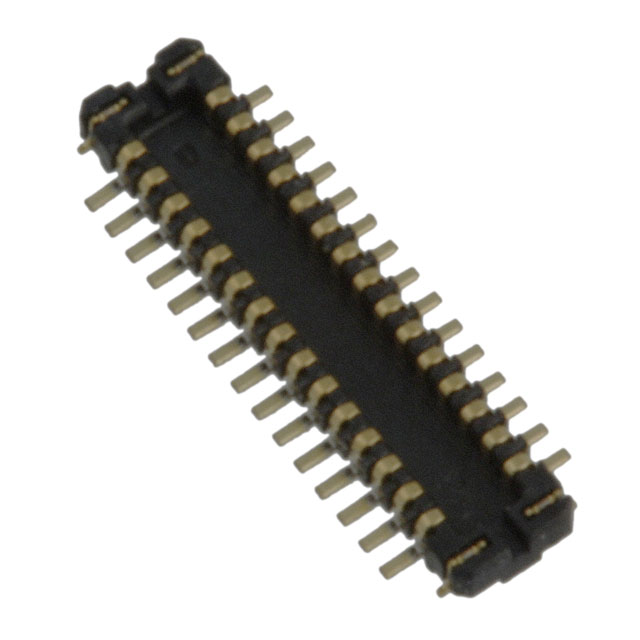

CONN HDR 30POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BM10B(0.8)-30DP-0.4V(75)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board	0.63 mm
Height Above Board	0.025 in
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Features	Height Above Board	Height Above Board	Number of Rows	Contact Finish	Connector Type	Mated Stacking Heights	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. BM10B(0.8)-10DP-0.4V(73)
Hirose Electric USA, Inc. BM10B(0.8)-60DP-0.4V(73)
Hirose Electric USA, Inc. BM10B(0.6)-24DP-0.4V(51)	Solder Retention	0.02 in	0.5 mm	2	Gold	Header Outer Shroud Contacts	0.6 mm	Surface Mount	0.016 in	0.4 mm	24
Hirose Electric USA, Inc. BM10B(0.8)-34DP-0.4V(75)	Solder Retention	0.025 in	0.63 mm	2	Gold	Header Outer Shroud Contacts	0.8 mm	Surface Mount	0.016 in	0.4 mm	34	4 Áin	0.1 Ám
Hirose Electric USA, Inc. BM10B(0.6)-10DP-0.4V(51)	Solder Retention	0.02 in	0.5 mm	2	Gold	Header Outer Shroud Contacts	0.6 mm	Surface Mount	0.016 in	0.4 mm	10
Hirose Electric USA, Inc. BM10B(0.8)-24DP-0.4V(73)
Hirose Electric USA, Inc. BM10B(0.8)-60DP-0.4V(51)	Solder Retention	0.025 in	0.63 mm	2	Gold	Header Outer Shroud Contacts	0.8 mm	Surface Mount	0.016 in	0.4 mm	60
Hirose Electric USA, Inc. BM10B(0.8)-44DP-0.4V(75)	Solder Retention	0.025 in	0.63 mm	2	Gold	Header Outer Shroud Contacts	0.8 mm	Surface Mount	0.016 in	0.4 mm	44	4 Áin	0.1 Ám
Hirose Electric USA, Inc. BM10B(0.8)-30DP-0.4V(75)	Solder Retention	0.025 in	0.63 mm	2	Gold	Header Outer Shroud Contacts	0.8 mm	Surface Mount	0.016 in	0.4 mm	30	4 Áin	0.1 Ám
Hirose Electric USA, Inc. BM10B(0.6)-10DP-0.4V(73)
