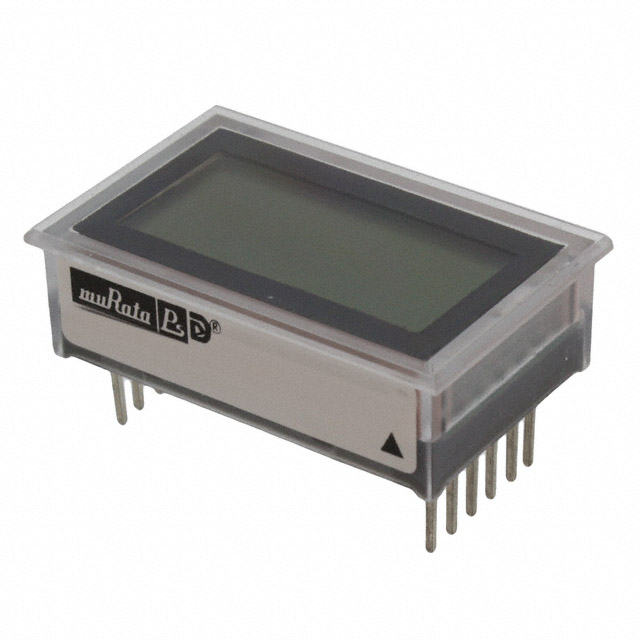

DMS-20LCD-0-5B-C

LTB

Murata Power Solutions Inc.

VOLTMETER 200MVDC LCD PANEL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DMS-20LCD-0-5B-C

LTB

Murata Power Solutions Inc.

VOLTMETER 200MVDC LCD PANEL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMS-20LCD-0-5B-C

Display Characters - Height	9.4 mm
Display Characters - Height	0.37 in
Display Type	LCD - Black Characters, Aqua Backlight
Measuring Range [Max]	0.2 VDC
Measuring Range [Min]	-200 mV
Measuring Type	Voltage
Number of Characters Per Row	3.5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [x]	33.93 mm
Panel Cutout Dimensions [y]	21.29 mm
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply	5 V
Weight	11.34 g
Weight	0.025 lb

DMS-20LCD Series

Part	Weight	Weight	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage - Supply	Number of Characters Per Row	Measuring Range [Max]	Measuring Range [Min]	Display Type	Type	Features	Measuring Type	Display Characters - Height	Display Characters - Height	Operating Temperature [Max]	Termination Style	Mounting Type
Murata Power Solutions Inc. DMS-20LCD-1-DCM-C	14.06 g	0.031 lb	33.93 mm	21.29 mm	24 VDC	3	50 VDC	8 VDC	LCD - Black Characters	Voltmeter	Bezel Sold Separately	Voltage	9.4 mm	0.37 in	60 °C	Screw Terminal
Murata Power Solutions Inc. DMS-20LCD-3-9B-C	10.89 g	0.024 lb	33.93 mm	21.29 mm	9 V	3.5	200 V	-200 V	LCD - Black Characters Aqua Backlight	Voltmeter		Voltage	9.4 mm	0.37 in	60 °C	Screw Terminal	Panel Mount - Bezel
Murata Power Solutions Inc. DMS-20LCD-0-5B-C	11.34 g	0.025 lb	33.93 mm	21.29 mm	5 V	3.5	0.2 VDC	-200 mV	LCD - Black Characters Aqua Backlight	Voltmeter		Voltage	9.4 mm	0.37 in	60 °C	PC Pin
Murata Power Solutions Inc. DMS-20LCD-1-9B-C	10.89 g	0.024 lb	33.93 mm	21.29 mm	9 V	3.5	2 V	-2 V	LCD - Black Characters Aqua Backlight	Voltmeter		Voltage	9.4 mm	0.37 in	60 °C	Screw Terminal	Panel Mount - Bezel
Murata Power Solutions Inc. DMS-20LCD-1-9-C	11.34 g	0.025 lb	33.93 mm	21.29 mm	9 V	3.5	2 V	-2 V	LCD - Black Characters	Voltmeter		Voltage	9.4 mm	0.37 in	60 °C	PC Pin
Murata Power Solutions Inc. DMS-20LCD-2-5-C	11.34 g	0.025 lb	33.93 mm	21.29 mm	5 V	3.5			LCD - Black Characters	Voltmeter		Voltage	9.4 mm	0.37 in	60 °C	PC Pin
Murata Power Solutions Inc. DMS-20LCD-0-9-C	11.34 g	0.025 lb	33.93 mm	21.29 mm	9 V	3.5	0.2 VDC	-200 mV	LCD - Black Characters	Voltmeter		Voltage	9.4 mm	0.37 in	60 °C	PC Pin
Murata Power Solutions Inc. DMS-20LCD-0-9B-C	10.89 g	0.024 lb	33.93 mm	21.29 mm	9 V	3.5	0.2 VDC	-200 mV	LCD - Black Characters Aqua Backlight	Voltmeter		Voltage	9.4 mm	0.37 in	60 °C	Screw Terminal	Panel Mount - Bezel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.27
		5	$ 37.54
		10	$ 35.23
		25	$ 32.34
		50	$ 30.03
		100	$ 29.45

Description

General part information

DMS-20LCD Series

Voltmeter LCD - Black Characters, Aqua Backlight Display Panel Mount
