DMS-20LCD-2-5-C - DMS-20LCD-2-5-C

DMS-20LCD-2-5-C

Active
Murata Power Solutions Inc.

VOLTMETER, DMS-20LCD SERIES, DC VOLTAGE, -20V TO +20V, 3.5 DIGITS, 4.75 V TO 5.25 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
DMS-20LCD-2-5-C - DMS-20LCD-2-5-C

DMS-20LCD-2-5-C

Active
Murata Power Solutions Inc.

VOLTMETER, DMS-20LCD SERIES, DC VOLTAGE, -20V TO +20V, 3.5 DIGITS, 4.75 V TO 5.25 V

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationDMS-20LCD-2-5-C
Display Characters - Height9.4 mm
Display Characters - Height0.37 in
Display TypeLCD - Black Characters
Measuring TypeVoltage
Number of Characters Per Row3.5
Operating Temperature [Max]60 °C
Operating Temperature [Min]0 °C
Panel Cutout Dimensions [x]33.93 mm
Panel Cutout Dimensions [y]21.29 mm
Termination StylePC Pin
TypeVoltmeter
Voltage - Supply5 V
Weight11.34 g
Weight0.025 lb

DMS-20LCD Series

PartWeightWeightPanel Cutout Dimensions [x]Panel Cutout Dimensions [y]Voltage - SupplyNumber of Characters Per RowMeasuring Range [Max]Measuring Range [Min]Display TypeTypeFeaturesMeasuring TypeDisplay Characters - HeightDisplay Characters - HeightOperating Temperature [Max]Operating Temperature [Min]Termination StyleMounting Type
Murata Power Solutions Inc.
DMS-20LCD-1-DCM-C
14.06 g
0.031 lb
33.93 mm
21.29 mm
24 VDC
3
50 VDC
8 VDC
LCD - Black Characters
Voltmeter
Bezel Sold Separately
Voltage
9.4 mm
0.37 in
60 °C
0 °C
Screw Terminal
Murata Power Solutions Inc.
DMS-20LCD-3-9B-C
10.89 g
0.024 lb
33.93 mm
21.29 mm
9 V
3.5
200 V
-200 V
LCD - Black Characters
Aqua Backlight
Voltmeter
Voltage
9.4 mm
0.37 in
60 °C
0 °C
Screw Terminal
Panel Mount - Bezel
Murata Power Solutions Inc.
DMS-20LCD-0-5B-C
11.34 g
0.025 lb
33.93 mm
21.29 mm
5 V
3.5
0.2 VDC
-200 mV
LCD - Black Characters
Aqua Backlight
Voltmeter
Voltage
9.4 mm
0.37 in
60 °C
0 °C
PC Pin
Murata Power Solutions Inc.
DMS-20LCD-1-9B-C
10.89 g
0.024 lb
33.93 mm
21.29 mm
9 V
3.5
2 V
-2 V
LCD - Black Characters
Aqua Backlight
Voltmeter
Voltage
9.4 mm
0.37 in
60 °C
0 °C
Screw Terminal
Panel Mount - Bezel
Murata Power Solutions Inc.
DMS-20LCD-1-9-C
11.34 g
0.025 lb
33.93 mm
21.29 mm
9 V
3.5
2 V
-2 V
LCD - Black Characters
Voltmeter
Voltage
9.4 mm
0.37 in
60 °C
0 °C
PC Pin
Murata Power Solutions Inc.
DMS-20LCD-2-5-C
11.34 g
0.025 lb
33.93 mm
21.29 mm
5 V
3.5
LCD - Black Characters
Voltmeter
Voltage
9.4 mm
0.37 in
60 °C
0 °C
PC Pin
Murata Power Solutions Inc.
DMS-20LCD-0-9-C
11.34 g
0.025 lb
33.93 mm
21.29 mm
9 V
3.5
0.2 VDC
-200 mV
LCD - Black Characters
Voltmeter
Voltage
9.4 mm
0.37 in
60 °C
0 °C
PC Pin
Murata Power Solutions Inc.
DMS-20LCD-0-9B-C
10.89 g
0.024 lb
33.93 mm
21.29 mm
9 V
3.5
0.2 VDC
-200 mV
LCD - Black Characters
Aqua Backlight
Voltmeter
Voltage
9.4 mm
0.37 in
60 °C
0 °C
Screw Terminal
Panel Mount - Bezel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 36.96
5$ 35.23
10$ 33.49
25$ 30.61
50$ 28.30
100$ 27.72
NewarkEach 1$ 38.44
5$ 36.64
10$ 34.84
25$ 31.83
50$ 29.43
100$ 28.83

Description

General part information

DMS-20LCD Series

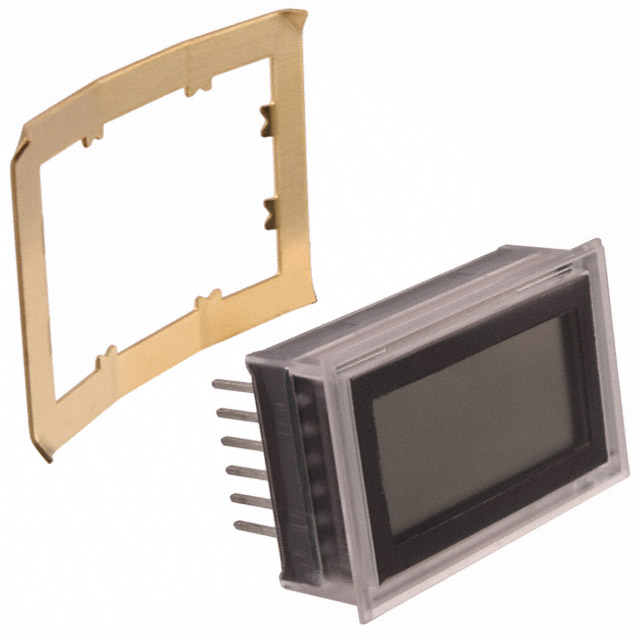

The DMS-20LCD-2-5-C is a 3.5-digit LCD Display Digital Panel Voltmeter is epoxy encapsulated in a subminiature (1.38 x 0.88 x 0.43-inch), 12-pin DIP package. This completely self-contained, fully operational meter offers a combination of ruggedness, long-term reliability and component-like ease-of-use. It is an extremely accurate (±1 count) and are only slightly larger than their 0.37-inch/9.4mm, enhanced-contrast, LCD displays. It incorporates a built-in bezel and are easily mounted in either panels or PC boards.
