UCLAMP0506A.TCT

Obsolete

Semtech Corporation

TVS DIODE 5VWM 12VC SC89-6

Search across all available documentation for this part.

Obsolete

Semtech Corporation

TVS DIODE 5VWM 12VC SC89-6

Technical Specifications

Parameters and characteristics for this part

Specification	UCLAMP0506A.TCT

Applications	General Purpose
Bidirectional Channels [custom]	5
Capacitance @ Frequency	30 pF
Current - Peak Pulse (10/1000µs)	7 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C

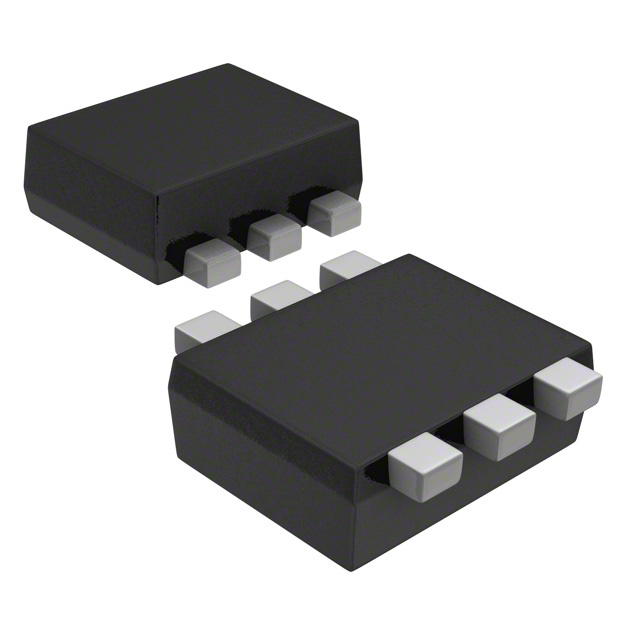

Package / Case	SOT-666, SOT-563
Power - Peak Pulse	100 W
Power Line Protection	False
Supplier Device Package	SC-89 (SOT-666)
Type	Zener
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp	12 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Package / Case	Package / Case	Mounting Type	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Type	Power - Peak Pulse	Applications	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp	Bidirectional Channels
Semtech Corporation UCLAMP3311Z.TNT	7.5 V	3.65 V	0603 Metric	0201	Surface Mount	6 pF	3.3 V	SLP0603P2X3	-40 °C	85 °C	4 A	1	Zener	30 W	General Purpose
Semtech Corporation UCLAMP0505T.TCT	12.5 V	6 V		6-XFDFN Exposed Pad	Surface Mount	10 pF	5 V	SLP1313P6T	-55 °C	125 ¯C			Zener	25 W	General Purpose	5
Semtech Corporation UCLAMP0506A.TCT		6 V		SOT-563 SOT-666	Surface Mount	30 pF	5 V	SC-89 (SOT-666)	-55 °C	125 ¯C	7 A	5	Zener	100 W	General Purpose		12 V
Semtech Corporation UCLAMP0512Z.TFT	15 V	6 V	0603 Metric	0201	Surface Mount	5 pF	5 V	SLP0603P3X3A	-40 °C	125 ¯C			Zener	30 W	General Purpose			2
Semtech Corporation UCLAMP0541Z.TVT	15 V	6 V	0603 Metric	0201	Surface Mount	6.5 pF	5 V	SLP0603P2X3	-55 °C	125 ¯C		1	Zener	25 W	General Purpose
Semtech Corporation UCLAMP3311Z.TVT	7.5 V	3.65 V	0603 Metric	0201	Surface Mount	6 pF	3.3 V	SLP0603P2X3	-40 °C	85 °C	4 A	1	Zener	30 W	General Purpose
Semtech Corporation UCLAMP0541Z2ATKT	15 V	6.5 V		2-XFDFN	Surface Mount	6.5 pF	5 V	SLP0402P2X4F	-40 °C	125 ¯C		1	Zener	30 W	General Purpose
Semtech Corporation UCLAMP0545T.TNT		6 V		6-XFDFN	Surface Mount	4.5 pF	5 V	SLP1007N6T	-55 °C	125 ¯C		5	Zener	12 W	General Purpose		12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12V Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount SC-89 (SOT-666)
