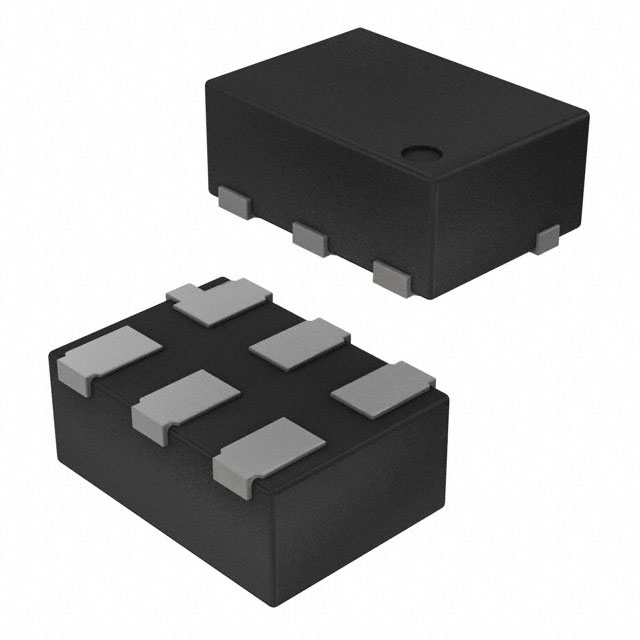

UCLAMP0545T.TNT

Obsolete

Semtech Corporation

TVS DIODE 5VWM 12VC SLP1007N6T

Search across all available documentation for this part.

Obsolete

Semtech Corporation

TVS DIODE 5VWM 12VC SLP1007N6T

Technical Specifications

Parameters and characteristics for this part

Specification	UCLAMP0545T.TNT

Applications	General Purpose
Bidirectional Channels [custom]	5
Capacitance @ Frequency	4.5 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	6-XFDFN
Power - Peak Pulse	12 W
Power Line Protection	False
Supplier Device Package	SLP1007N6T
Type	Zener
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp	12 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Package / Case	Package / Case	Mounting Type	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Type	Power - Peak Pulse	Applications	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp	Bidirectional Channels
Semtech Corporation UCLAMP3311Z.TNT	7.5 V	3.65 V	0603 Metric	0201	Surface Mount	6 pF	3.3 V	SLP0603P2X3	-40 °C	85 °C	4 A	1	Zener	30 W	General Purpose
Semtech Corporation UCLAMP0505T.TCT	12.5 V	6 V		6-XFDFN Exposed Pad	Surface Mount	10 pF	5 V	SLP1313P6T	-55 °C	125 ¯C			Zener	25 W	General Purpose	5
Semtech Corporation UCLAMP0506A.TCT		6 V		SOT-563 SOT-666	Surface Mount	30 pF	5 V	SC-89 (SOT-666)	-55 °C	125 ¯C	7 A	5	Zener	100 W	General Purpose		12 V
Semtech Corporation UCLAMP0512Z.TFT	15 V	6 V	0603 Metric	0201	Surface Mount	5 pF	5 V	SLP0603P3X3A	-40 °C	125 ¯C			Zener	30 W	General Purpose			2
Semtech Corporation UCLAMP0541Z.TVT	15 V	6 V	0603 Metric	0201	Surface Mount	6.5 pF	5 V	SLP0603P2X3	-55 °C	125 ¯C		1	Zener	25 W	General Purpose
Semtech Corporation UCLAMP3311Z.TVT	7.5 V	3.65 V	0603 Metric	0201	Surface Mount	6 pF	3.3 V	SLP0603P2X3	-40 °C	85 °C	4 A	1	Zener	30 W	General Purpose
Semtech Corporation UCLAMP0541Z2ATKT	15 V	6.5 V		2-XFDFN	Surface Mount	6.5 pF	5 V	SLP0402P2X4F	-40 °C	125 ¯C		1	Zener	30 W	General Purpose
Semtech Corporation UCLAMP0545T.TNT		6 V		6-XFDFN	Surface Mount	4.5 pF	5 V	SLP1007N6T	-55 °C	125 ¯C		5	Zener	12 W	General Purpose		12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount SLP1007N6T

Technical documentation and resources

No documents available
