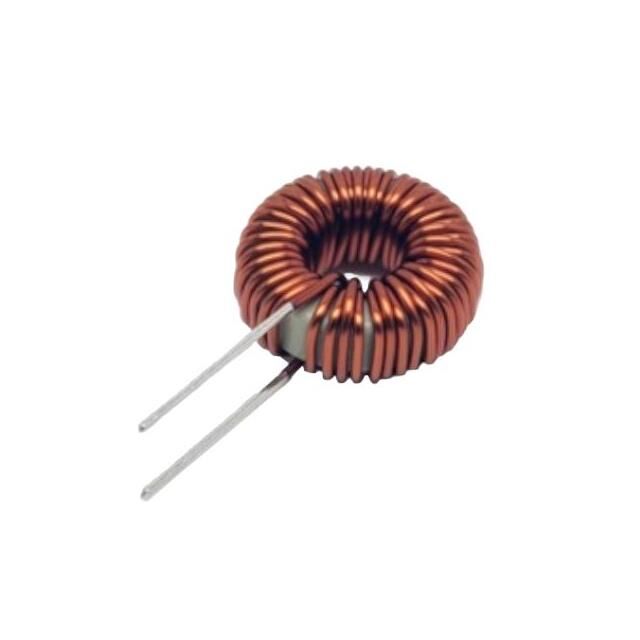

PHBC14-1R2A0120V

Active

KEMET

INDUCTOR LINE FILTER TOROID 120UH 20% 100KHZ 8A 0.0299OHM DCR RDL TRAY

Search across all available documentation for this part.

Active

KEMET

INDUCTOR LINE FILTER TOROID 120UH 20% 100KHZ 8A 0.0299OHM DCR RDL TRAY

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Package / Case	Package / Case	Number of Lines	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Inductance @ Frequency
KEMET PHBC14-1R2A0187V	125 °C	-40 °C	34 mm	1.339 "	8 A	37.6 mOhm	No Base Vertical	2 Lead	2	Through Hole	1.339 in	34 mm	187 µH
KEMET PHBC14-1R2A0120V	125 °C	-40 °C	34 mm	1.339 "	8 A	29.9 mOhm	No Base Vertical	2 Lead	2	Through Hole	1.339 in	34 mm	120 µH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	5	$ 13.05
Digikey	Bulk	120	$ 7.38
Newark	Each	100	$ 10.29
		250	$ 9.56
		500	$ 8.93

General part information

120 µH 2 Line Common Mode Choke Through Hole 8A DCR 29.9mOhm
