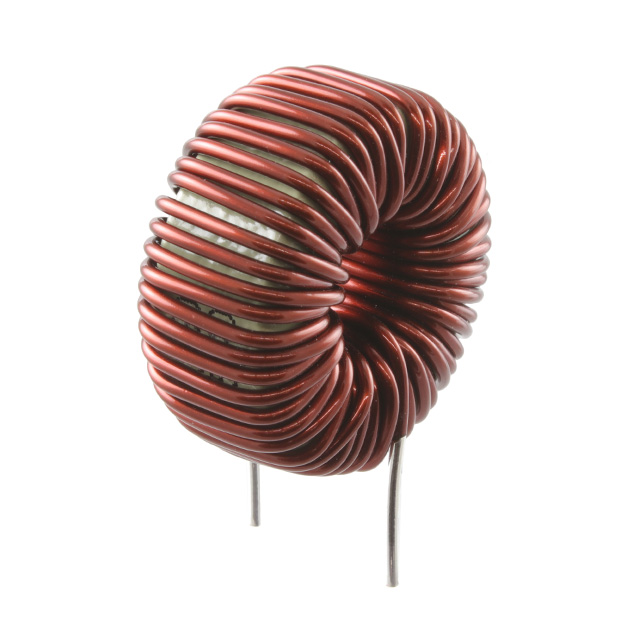

PHBC14-1R2A0187V
ActiveKEMET
CMC 187UH 8A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
PHBC14-1R2A0187V
ActiveKEMET
CMC 187UH 8A 2LN TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PHBC14-1R2A0187V |
|---|---|
| Current Rating (Max) [Max] | 8 A |
| DC Resistance (DCR) (Max) [Max] | 37.6 mOhm |
| Height (Max) [Max] | 1.339 in |
| Height (Max) [Max] | 34 mm |
| Inductance @ Frequency | 187 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Vertical, No Base |
| Package / Case | 2 Lead |
| Size / Dimension [diameter] | 34 mm |
| Size / Dimension [diameter] | 1.339 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.03 | |
| 10 | $ 9.81 | |||
| 25 | $ 9.05 | |||
| 50 | $ 8.51 | |||
Description
General part information
PHBC14 Series
187 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 8A DCR 37.6mOhm
